Iscar ISCAR 6003625

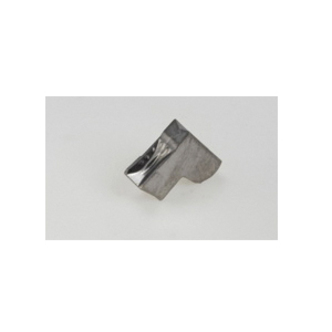

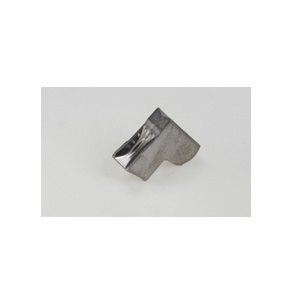

Iscar 6003625 TANG-GRIP Cut-Off/Parting Insert, N3C Insert, TAGN Insert, Material Grade: H, K, M, P, S, 3.05 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC807, PVD Coated
Invoice description:
Tag N3c Ic807
Factory Order
Iscar Cut-Off/Parting Insert, Series: TANG-GRIP, TAGN Insert, N3C Insert, 3.05 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.05 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC807, ISO Code: TAG N3C IC807, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity (except 7 and 12 mm with double cavity), negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC807 grade - a tough sub-micron substrate, SUMO TEC TiAlN PVD-coated
- Suitable for low-to-medium cutting speed
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.05 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeN3C
Insert StyleTAGN
ISO CodeTAG N3C IC807
Lead Angle DirectionNeutral
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3.05 mm
Additional Information
Country of OriginIL
