Iscar ISCAR 6003600

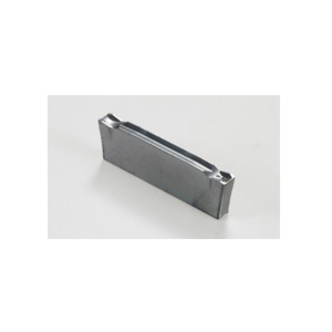

Iscar 6003600 DO-GRIP Cut-Off/Parting Insert, 2202C Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 2.2 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC907, PVD Coated
Invoice description:
Dgn 2202c Ic907
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2202C Insert, 2.2 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC907, ISO Code: DGN 2202C IC907, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC907 grade - a tough sub-micron substrate, TiAlN PVD-coated
- Suitable for low-to-medium cutting speed
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2202C
Insert StyleDGN
ISO CodeDGN 2202C IC907
Lead Angle DirectionNeutral
Length19.8 mm
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
