Iscar ISCAR 6003526

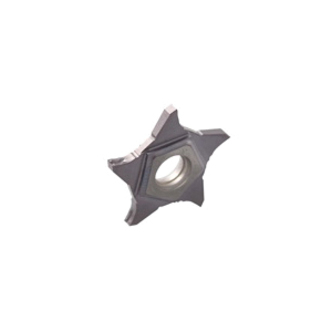

Iscar 6003526 PENTACUT Parting Insert, 24R150Z15D Insert, PENTA Insert, Material Grade: H, K, M, P, S, 1.5 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC1008, PVD Coated
Invoice description:
Penta 24r150z15d Ic1008
Factory Order

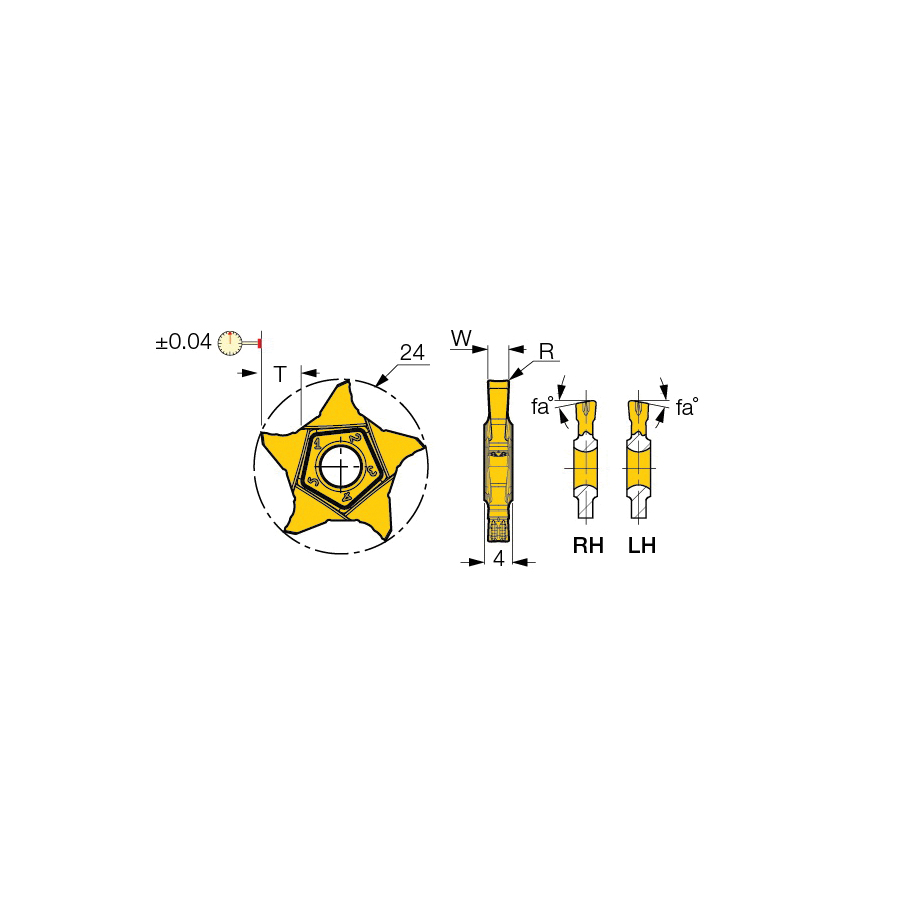

Iscar Parting Insert, Series: PENTACUT, PENTA Insert, 24R150Z15D Insert, 1.5 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 0.157 in Thickness, 1.5 mm Width, Z Chipbreaker, 0.06 mm Corner Radius, Manufacturers Grade: IC1008, ISO Code: PENTA 24R150Z15D IC1008, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- Parting insert for soft parts and bearing steel, high positive rake
- Most economical system with 5 cutting edges
- IC1008 grade - used for high temperature alloys, stainless steel and hardened steel
- Low-to-medium speed, interrupted cut
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerZ
Corner Radius0.06 mm
Cutting Width1.5 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size24R150Z15D
Insert StylePENTA
ISO CodePENTA 24R150Z15D IC1008
Lead Angle15 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC1008
MaterialCarbide
Material GradeH, K, M, P, S
SeriesPENTACUT
ShapeRectangle
Thickness0.157 in
Width1.5 mm
Additional Information
Country of OriginIL
