Iscar ISCAR 6003464

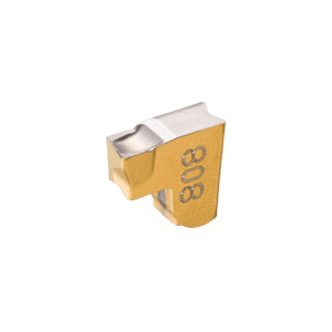

Iscar 6003464 TANG-GRIP Parting Insert, L3C-6D Insert, TAG Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, 6 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Factory Order

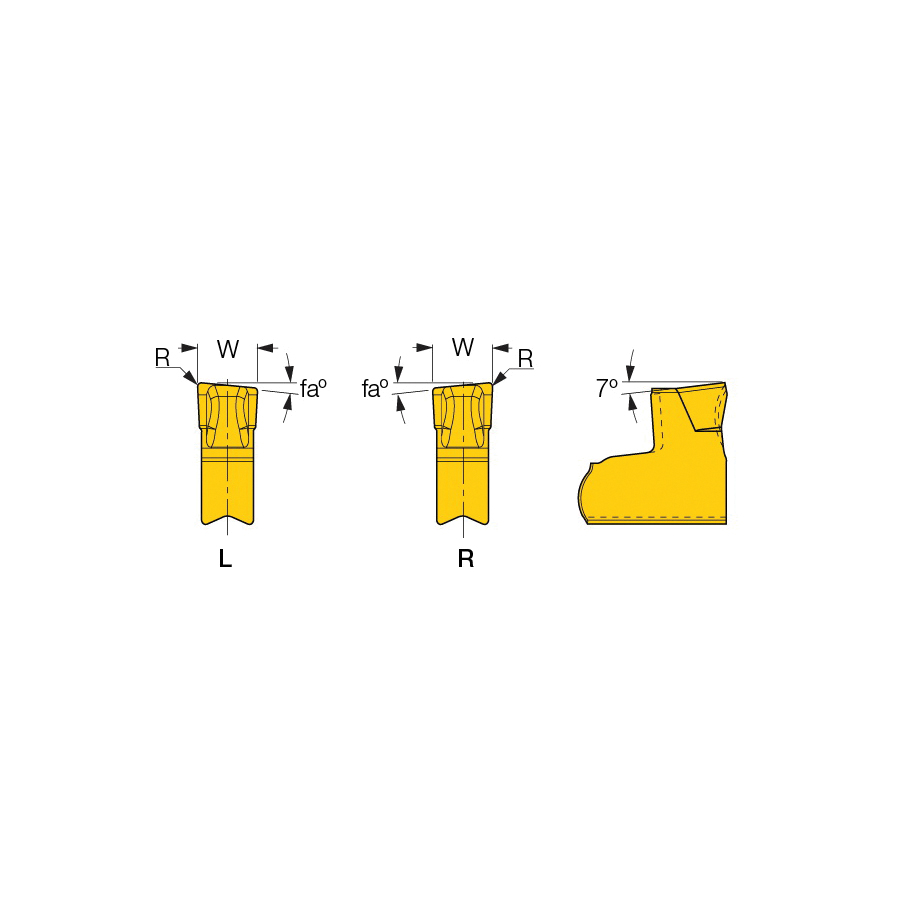

Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, L3C-6D Insert, 3 mm Cutting Width, 6 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: TAG L3C-6D IC908, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert SizeL3C-6D
Insert StyleTAG
ISO CodeTAG L3C-6D IC908
Lead Angle6 deg
Lead Angle DirectionLeft Hand
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
