Iscar ISCAR 6003367

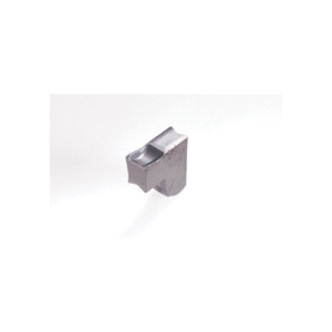

Iscar 6003367 TANG-GRIP Parting Insert, N3C Insert, TAGN Insert, Material Grade: H, K, M, N, P, S, 3.05 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
In stock
(20)
Iscar Parting Insert, Series: TANG-GRIP, TAGN Insert, N3C Insert, 3.05 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.05 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: TAG N3C IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity (except 7 mm and 12 mm with double cavity), negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- Tang-Grip clamping system - very rigid clamping in a tangentially oriented pocket
- Enables machining at very high feed rates and provides excellent straightness and surface finish
- Recommended for parting large diameter parts and for interrupted cuts
- Offers a free, unobstructed chip flow
- Excellent tool and pocket life
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance

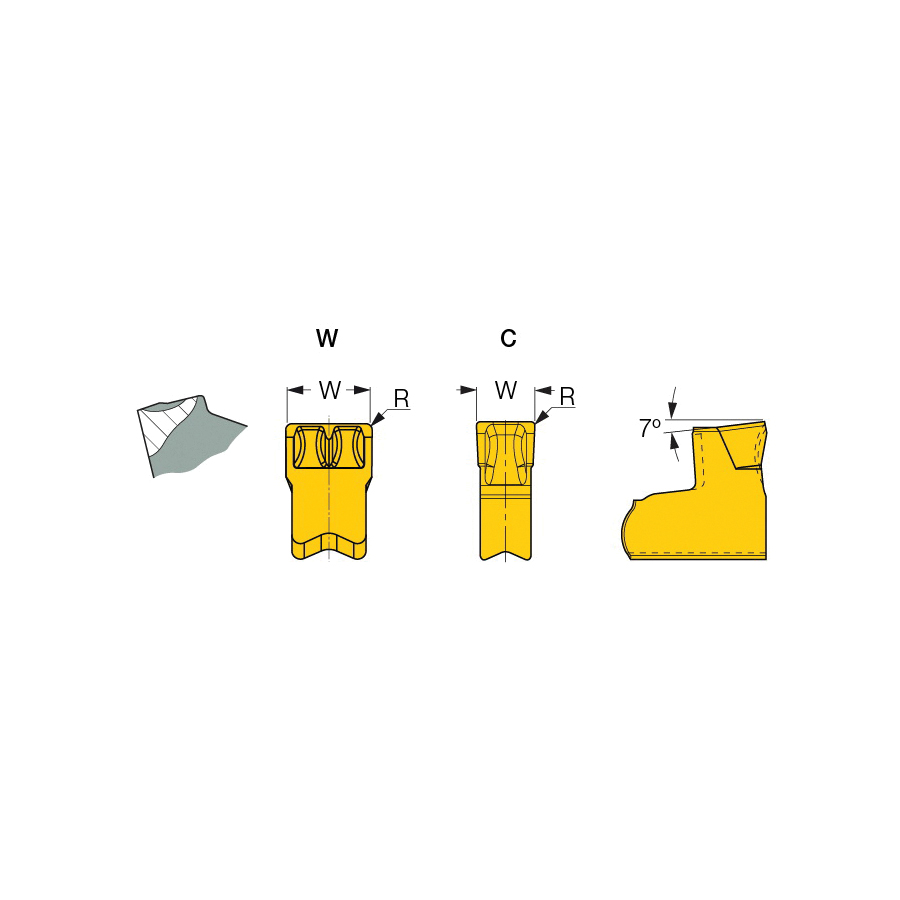

Specifications
ApplicationExternal Grooving, Groove Turning, Side Slotting and Slitting
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.05 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeN3C
Insert StyleTAGN
ISO CodeTAG N3C IC908
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3.05 mm
