Iscar ISCAR 6003357

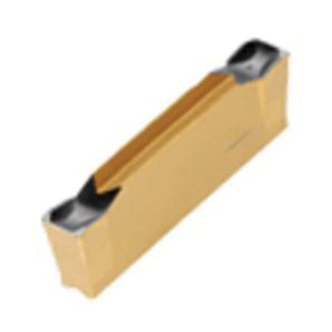

Iscar 6003357 DO-GRIP Parting Insert, C4003C Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 4 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgnc 4003c Ic908
Factory Order

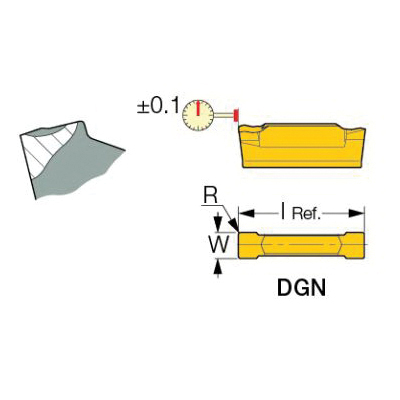

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, C4003C Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 4 mm Width, 19 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN C4003C IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to high feed
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerC
Corner Radius0.3 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert SizeC4003C
Insert StyleDGN
ISO CodeDGN C4003C IC908
Lead Angle DirectionNeutral
Length19 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
SeriesDO-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIS
