Iscar ISCAR 6003301

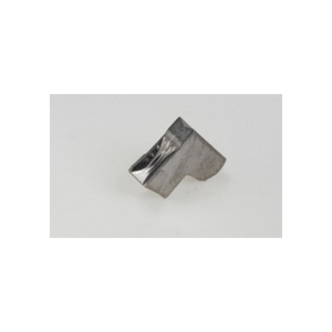

Iscar 6003301 TANG-GRIP Parting Insert, N3C Insert, TAGN Insert, Material Grade: M, P, S, 3.05 mm W Cutting, 3 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC928, PVD Coated

Invoice description: Tag N3c Ic928

UNSPSC: 23291503

Manufacturer PN: 6003301

^$20.80 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

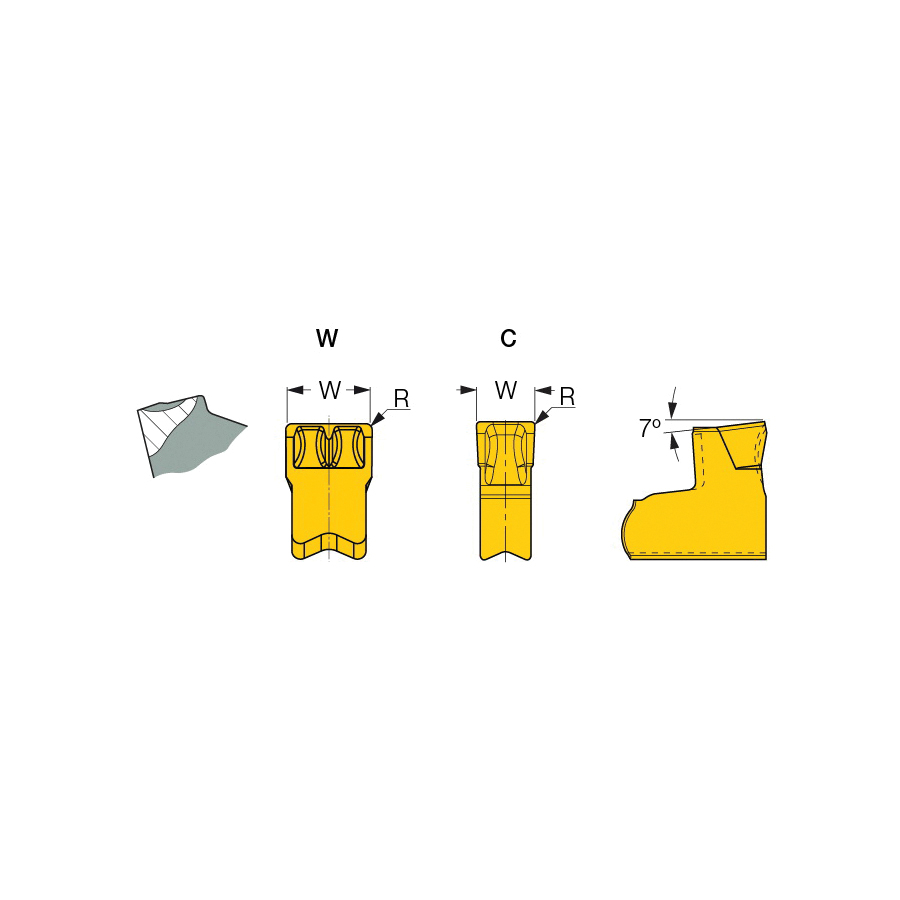

Iscar Parting Insert, Series: TANG-GRIP, TAGN Insert, N3C Insert, 3.05 mm Cutting Width, 3 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.05 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: TAG N3C IC928, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S

Features
First choice for the parting of bars, hard materials and tough applications
A positive rake, single cavity (except 7 mm and 12 mm with double cavity), negative land and shoulders, provides extra cutting edge strength
Medium-to-high feeds
Tang-Grip clamping system - very rigid clamping in a tangentially oriented pocket
Enables machining at very high feed rates and provides excellent straightness and surface finish
Recommended for parting large diameter parts and for interrupted cuts
Offers a free, unobstructed chip flow
Excellent tool and pocket life
IC928 grade - a PVD-TiAlN coated tough grade
Suitable for milling stainless steel, high temperature alloys and other alloy steels
