Iscar ISCAR 6003291

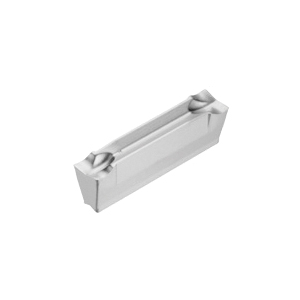

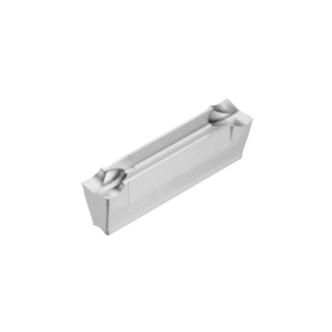

Iscar 6003291 DO-GRIP Parting Insert, 3202J Insert, DGNM Insert, Material Grade: H, K, M, N, P, S, 3.18 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgnm 3202j Ic908
Factory Order

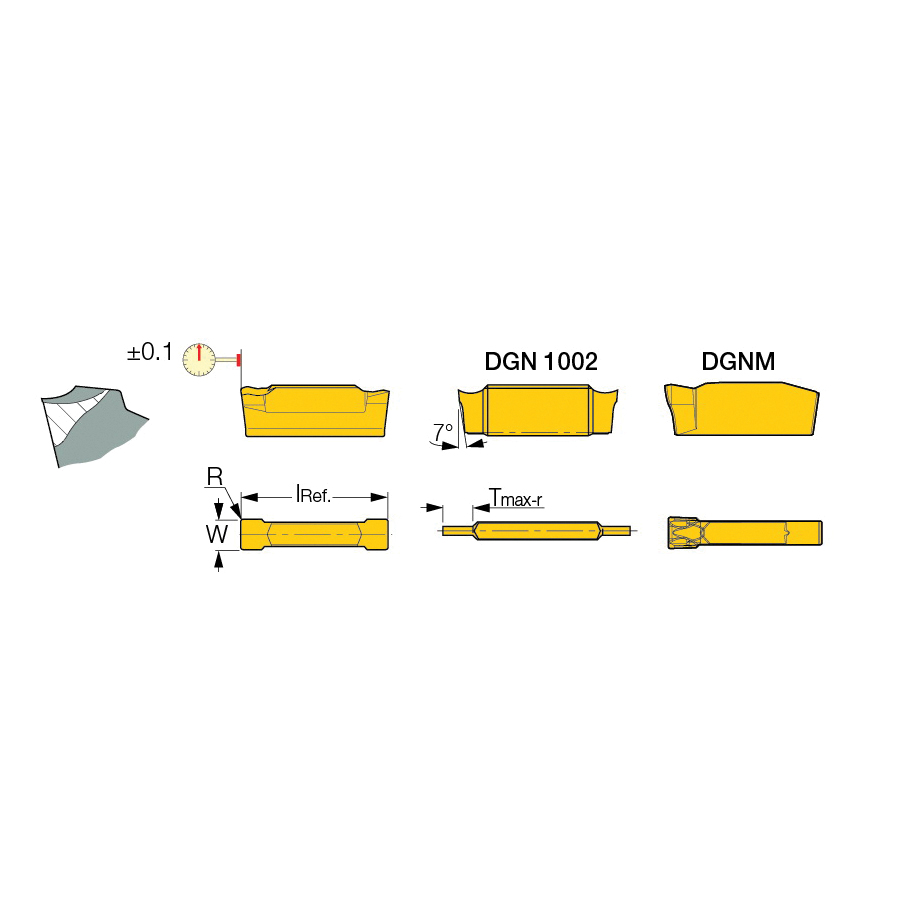

Iscar Parting Insert, Series: DO-GRIP, DGNM Insert, 3202J Insert, 3.18 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.18 mm Width, 20.3 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGNM 3202J IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- Single ended for very deep applications
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3.18 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3202J
Insert StyleDGNM
ISO CodeDGNM 3202J IC908
Lead Angle0 deg
Lead Angle DirectionNeutral
Length20.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.18 mm
Additional Information
Country of OriginIS
