Iscar ISCAR 6003287

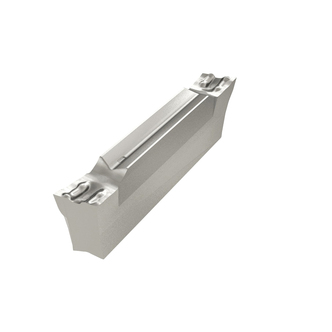

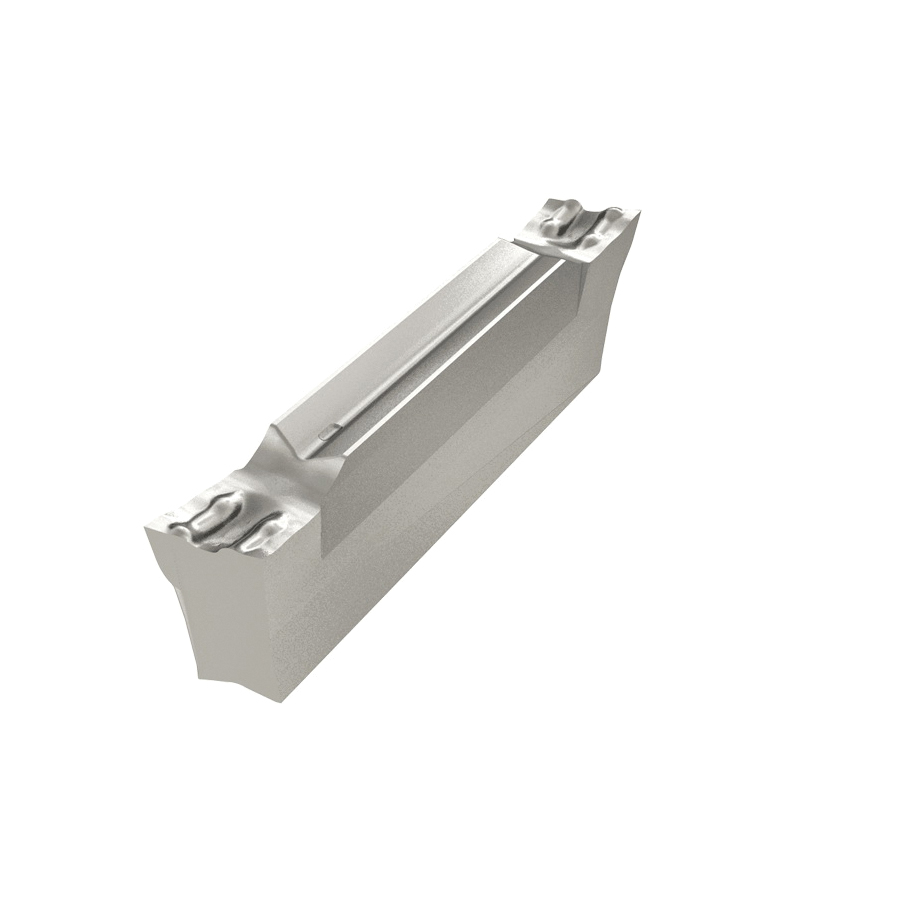

Iscar 6003287 DO-GRIP Cut-Off/Parting Insert, 3002Z Insert, DGR Insert, Material Grade: H, K, M, P, S, 3 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgr 3002z-6d Ic908
Factory Order

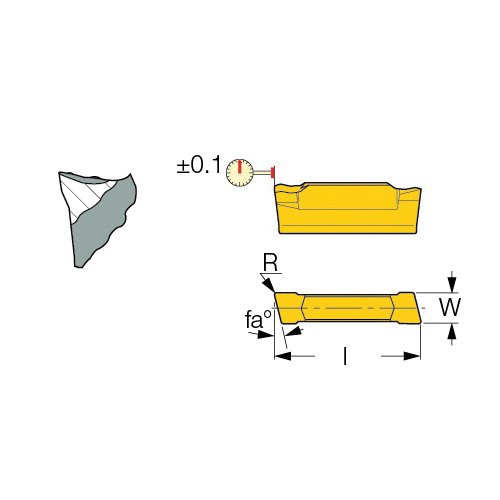

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 3002Z Insert, 3 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 20.9 mm Length, Z Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 3002Z-6D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- A chipformer for use at low feeds
- Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials
- The tight chipformer ensures short, deformed chips
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerZ
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3002Z
Insert StyleDGR
ISO CodeDGR 3002Z-6D IC908
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length20.9 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
