Iscar ISCAR 6003283

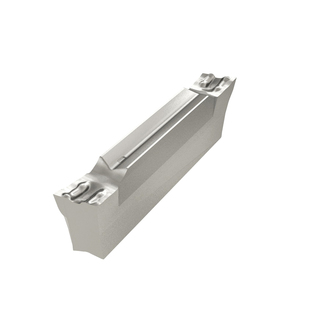

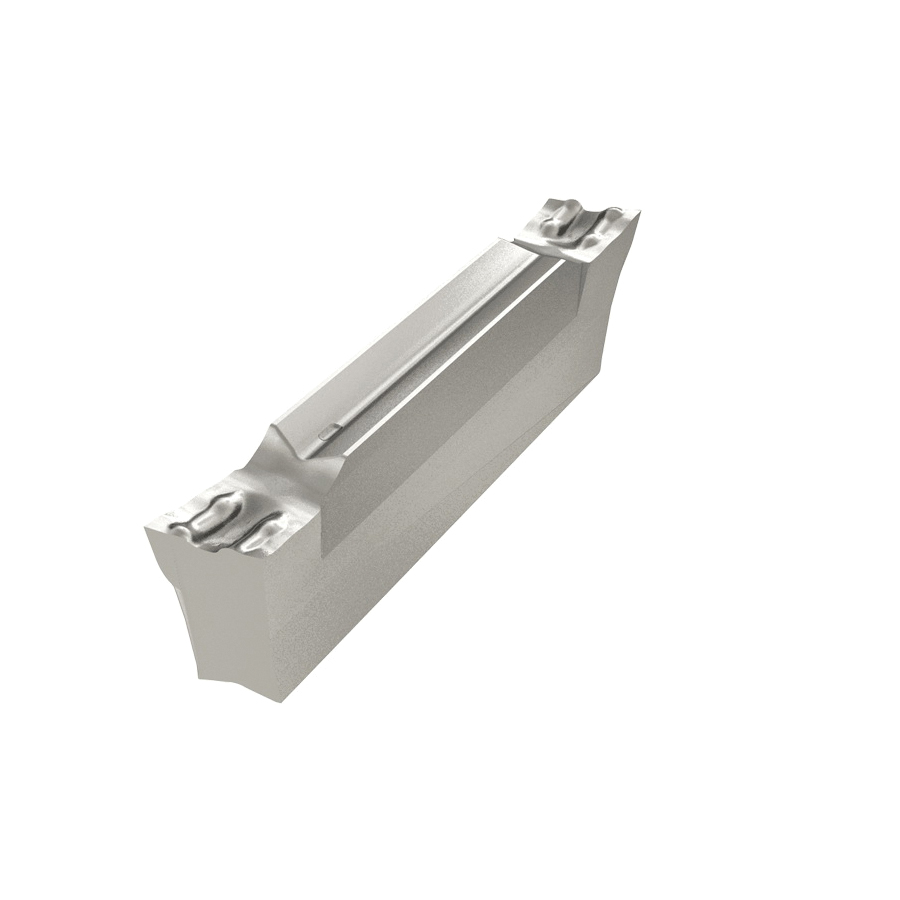

Iscar 6003283 DO-GRIP Parting Insert With Internal Coolant Channel, 2002Z Insert, DGR Insert, Material Grade: H, K, M, N, P, S, 2 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Factory Order
Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 2002Z Insert, 2 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 2 mm Width, 20.9 mm Length, Z Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 2002Z-6D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- A chipformer for use at low feeds
- Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials
- The tight chipformer ensures short, deformed chips
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- Z-type chipbreaker - cutting edge with high positive rake, suitable for parting of tubes, thin walled arts and for small diameters
- Suitable for soft materials
- Excellent for cutting bearing steel and stainless steel
- Low to medium feeds

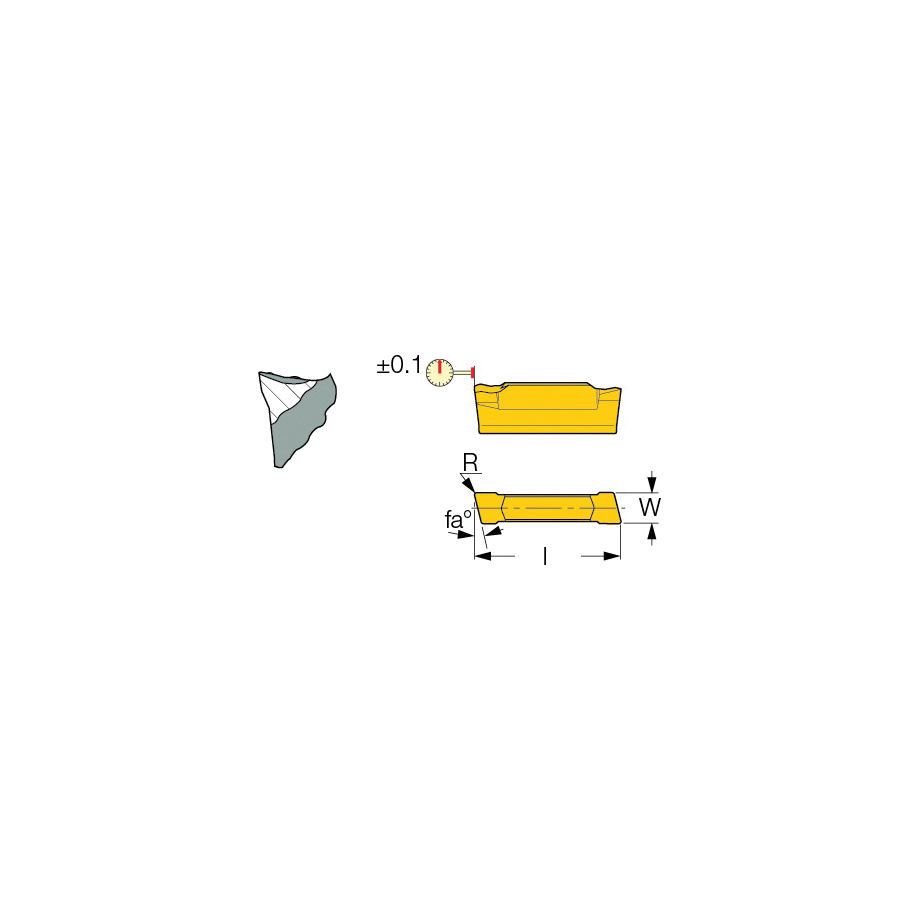

Specifications
ApplicationFor groove turning applications
ChipbreakerZ
Corner Radius0.2 mm
Cutting Width2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2002Z
Insert StyleDGR
ISO CodeDGR 2002Z-6D IC908
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length20.9 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
SeriesDO-GRIP
ShapeRectangle
Width2 mm
