Iscar ISCAR 6003280

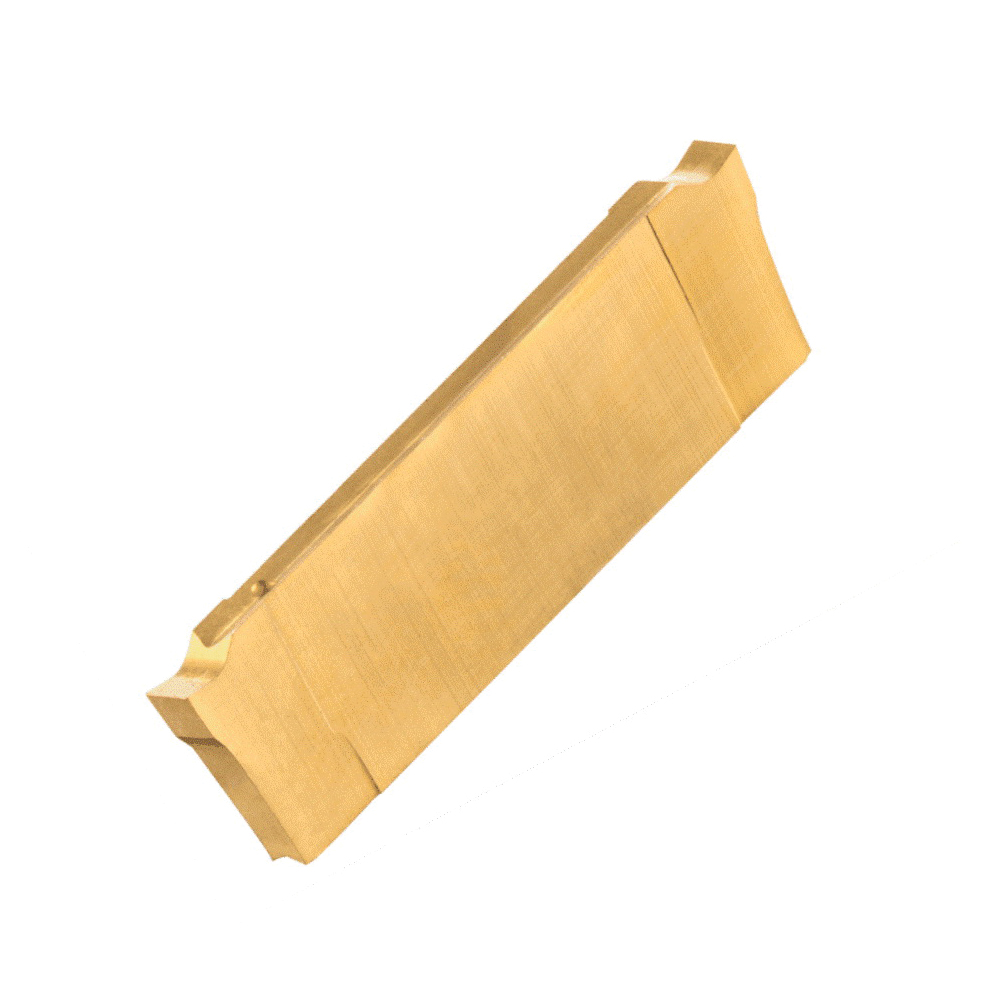

Iscar 6003280 DO-GRIP Parting Insert, 1000P Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 1 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC508, PVD Coated
Invoice description:
Dgn 1000p Ic508
Factory Order

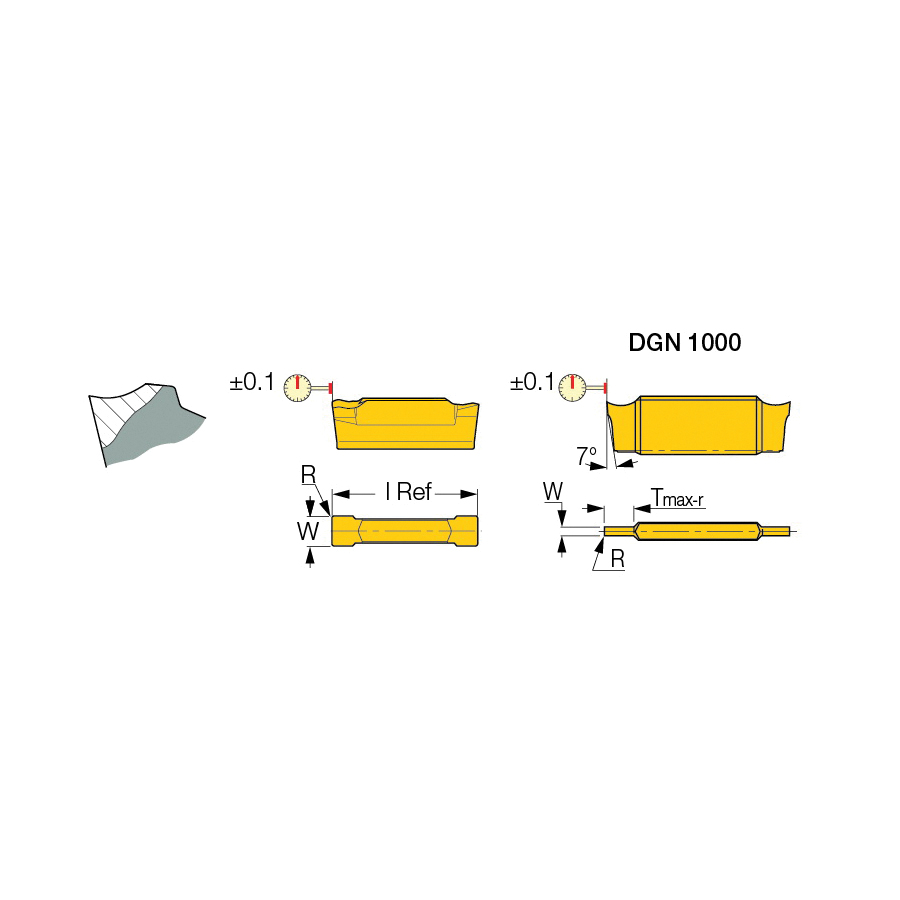

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 1000P Insert, 1 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1 mm Width, 20 mm Length, P Chipbreaker, 0.05 mm Corner Radius, Manufacturers Grade: IC508, ISO Code: DGN 1000P IC508, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Double sided insert with a very positive rake inclination and sharp cutting edge
- Locutting width forces, reduced built-up edge
- Used on soft materials, thin parts and general parting at low feed
- IC508 grade - a tough submicron substrate, TiCN+TiN PVD-coated grade
- Designed for machining wide range of materials at low-to medium cutting speeds, interrupted cut and unfavorable conditions
- Excellent notch wear and built-up edge resistance
- P-type chipbreaker - very positive rake inclination and sharp cutting edge
- For soft materials, slim parts and general parting
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerP
Corner Radius0.05 mm
Cutting Width1 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size1000P
Insert StyleDGN
ISO CodeDGN 1000P IC508
Lead Angle DirectionNeutral
Length20 mm
Manufacturers GradeIC508
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width1 mm
Additional Information
Country of OriginIS
