Iscar ISCAR 6003241

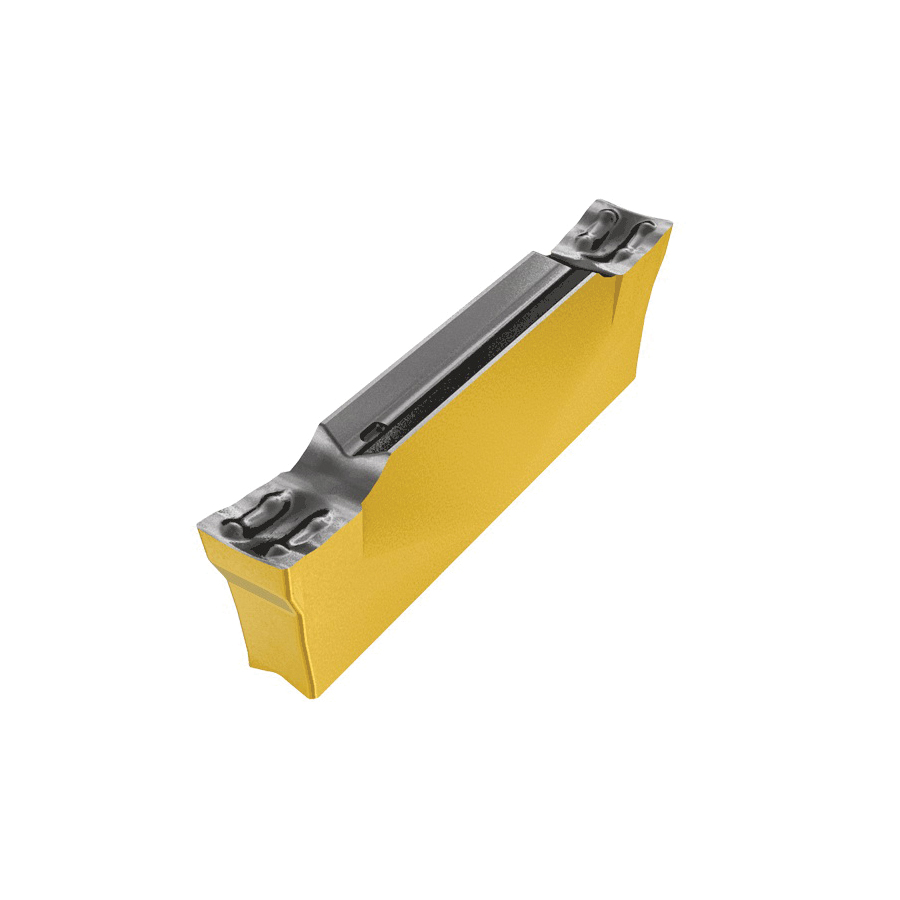

Iscar 6003241 DO-GRIP Parting Insert, 3002Z Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 3 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Factory Order
Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 3002Z Insert, 3 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 3 mm Width, 20.9 mm Length, Z Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 3002Z IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- A chipformer for use at low feeds on Cr-Ni alloys and low carbon steel, especially in the bearing industry, and on similar, problematic materials
- The narrow chipformer design ensures short deformed chips and high surface finish
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- Z-type chipbreaker - cutting edge with high positive rake, suitable for parting of tubes, thin walled arts and for small diameters
- Suitable for soft materials
- Excellent for cutting bearing steel and stainless steel
- Low-to-medium feeds

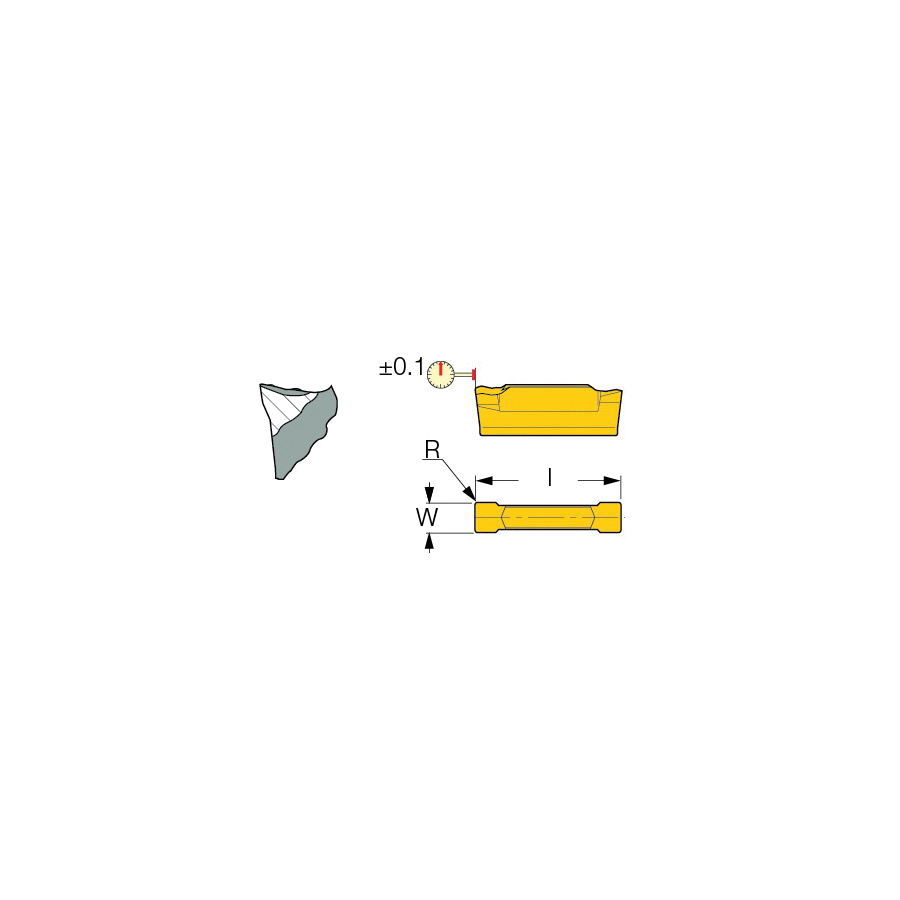

Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerZ
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3002Z
Insert StyleDGN
ISO CodeDGN 3002Z IC908
Lead Angle DirectionNeutral
Length20.9 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
SeriesDO-GRIP
ShapeRectangle
Width3 mm
