Iscar ISCAR 6003232

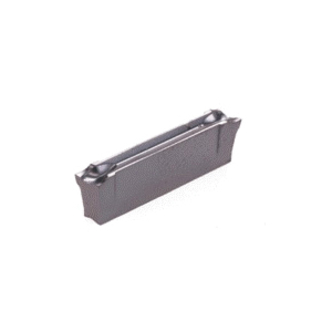

Iscar 6003232 DO-GRIP Cut-Off/Parting Insert, 4803J-8D Insert, DGR Insert, Material Grade: M, P, S, 4.8 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Factory Order

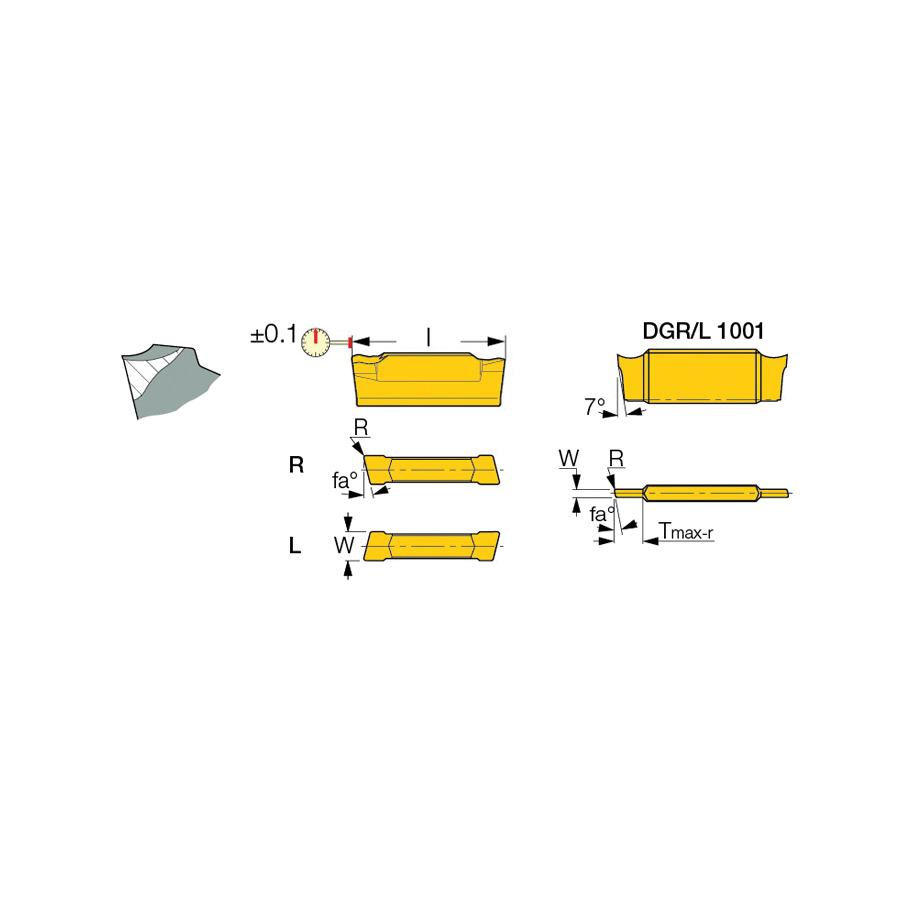

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 4803J-8D Insert, 4.8 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4.8 mm Width, 20.4 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGR 4803J-8D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width4.8 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size4803J-8D
Insert StyleDGR
ISO CodeDGR 4803J-8D IC328
Lead Angle8 deg
Lead Angle DirectionRight Hand
Length20.4 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4.8 mm
