Iscar ISCAR 6003231

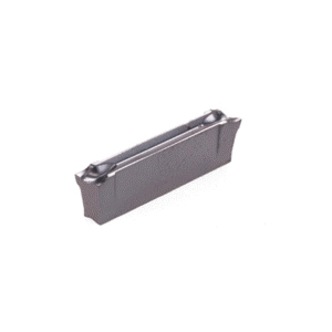

Iscar 6003231 DO-GRIP Parting Insert With Internal Coolant Channel, 4803J-4D Insert, DGR Insert, Material Grade: M, P, S, 4.8 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328
Invoice description:
Dgr 4803j-4d Ic328
Factory Order

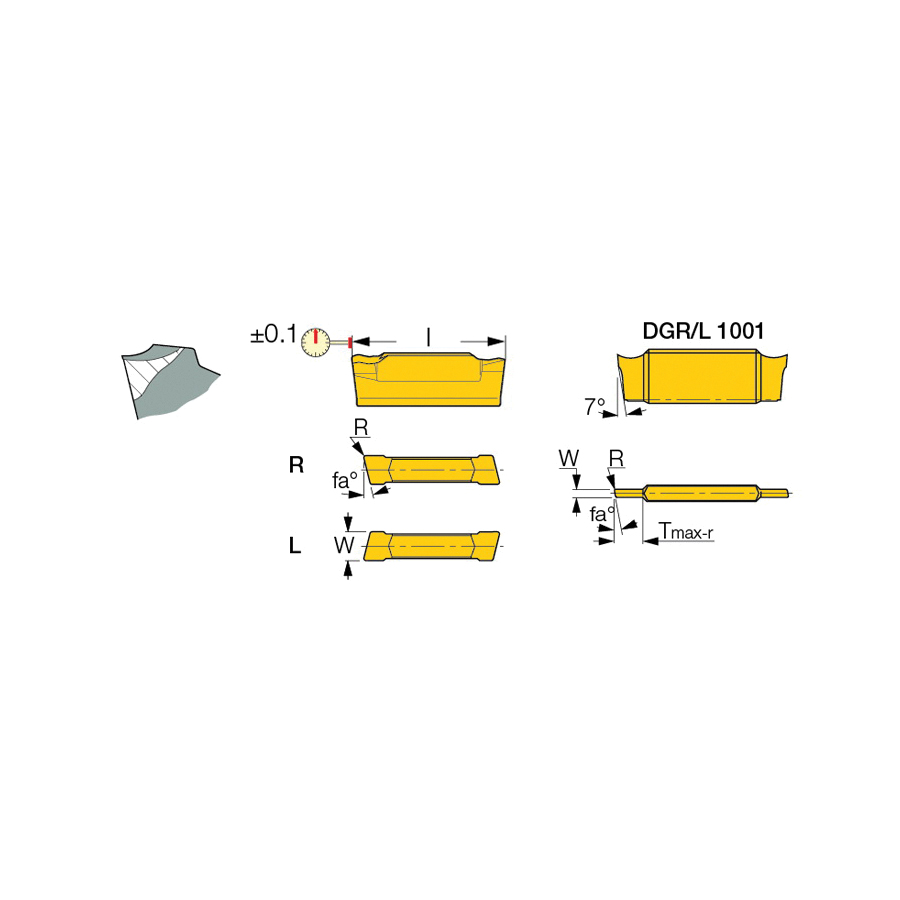

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 4803J-4D Insert, 4.8 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4.8 mm Width, 20.4 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGR 4803J-4D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS - sharp corner
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
- Suitable for tooling system
Specifications
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width4.8 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size4803J-4D
Insert StyleDGR
ISO CodeDGR 4803J-4D IC328
Lead Angle4 deg
Lead Angle DirectionRight Hand
Length20.4 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4.8 mm
Additional Information
Country of OriginIS
