Iscar ISCAR 6003140

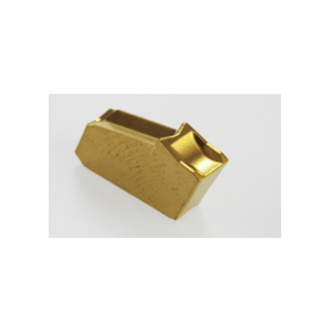

Iscar 6003140 SELF-GRIP Cut-Off/Parting Insert, 3 Insert, GFN Insert, Material Grade: M, P, 3.03 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC1028, PVD Coated
Invoice description:
Gfn 3 Ic1028
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 3 Insert, 3.03 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.03 mm Width, 0.2 mm Corner Radius, Manufacturers Grade: IC1028, ISO Code: GFN 3 IC1028, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC1028 grade - roughing applications at low speed, high feed and interrupted cut
- High resistance to mechanical and thermal shock
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Corner Radius0.2 mm
Cutting Width3.03 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3
Insert StyleGFN
ISO CodeGFN 3 IC1028
Lead Angle DirectionNeutral
Manufacturers GradeIC1028
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3.03 mm
