Iscar ISCAR 6003139

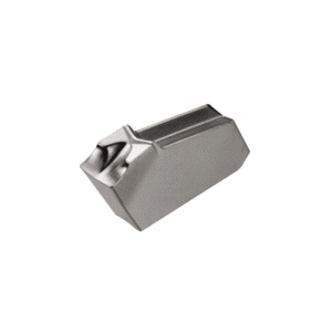

Iscar 6003139 SELF-GRIP Cut-Off/Parting Insert, 2J Insert, GFN Insert, Material Grade: H, K, M, N, P, S, 1.99 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Gfn 2j Ic908
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 2J Insert, 1.99 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.99 mm Width, J Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: GFN 2J IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
ChipbreakerJ
Corner Radius0.16 mm
Cutting Width1.99 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2J
Insert StyleGFN
ISO CodeGFN 2J IC908
Lead Angle DirectionNeutral
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width1.99 mm
Additional Information
Standards/ApprovalISO 9001
Country of OriginIS
