Iscar ISCAR 6003037

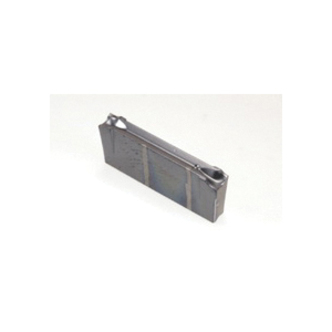

Iscar 6003037 DO-GRIP Parting Insert With Internal Coolant Channel, 3100JS-15D Insert, DGR Insert, Material Grade: H, K, M, N, P, S, 3.1 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD Coated
Invoice description:
Dgr 3100js-15d Ic908
Factory Order

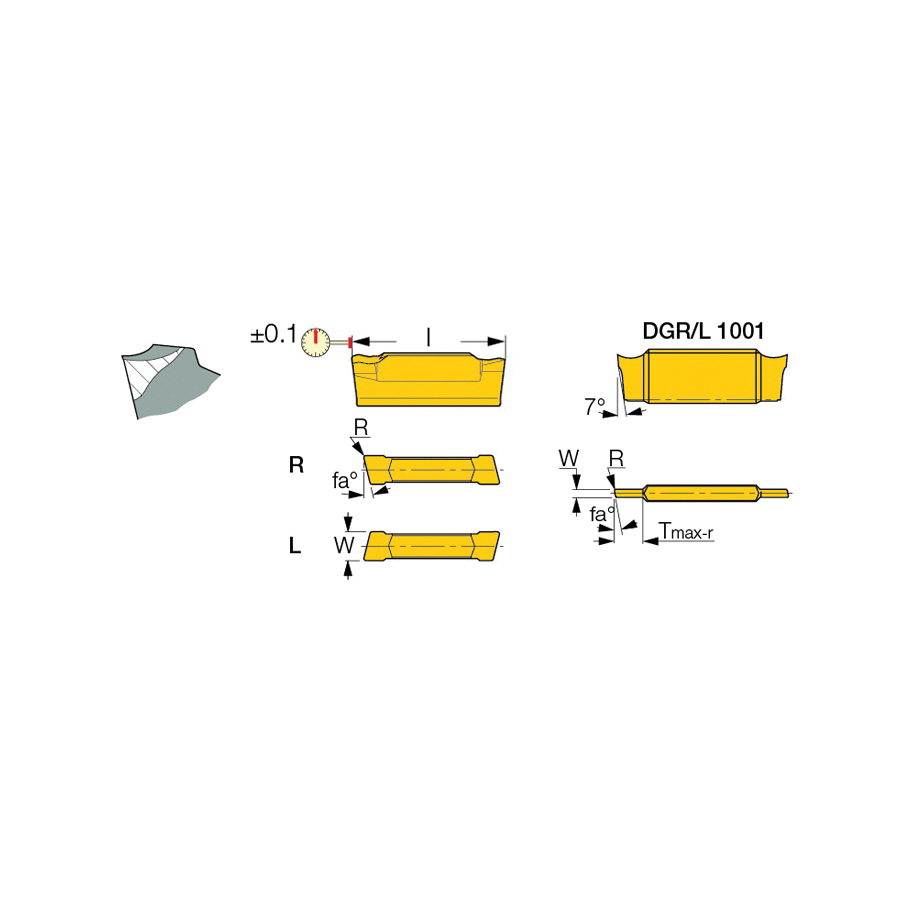

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 3100JS-15D Insert, 3.1 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 20.6 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 3100JS-15D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS - sharp corner
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor groove turning applications
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3100JS-15D
Insert StyleDGR
ISO CodeDGR 3100JS-15D IC908
Lead Angle15 deg
Lead Angle DirectionRight Hand
Length20.6 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIS
