Iscar ISCAR 6003035

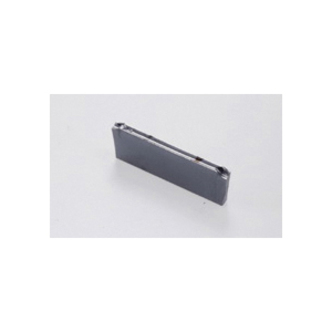

Iscar 6003035 DO-GRIP Parting Insert With Internal Coolant Channel, 1400JS-15D Insert, DGR Insert, Material Grade: H, K, M, N, P, S, 1.4 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD Coated
Invoice description:
Dgr 1400js-15d Ic908
Factory Order

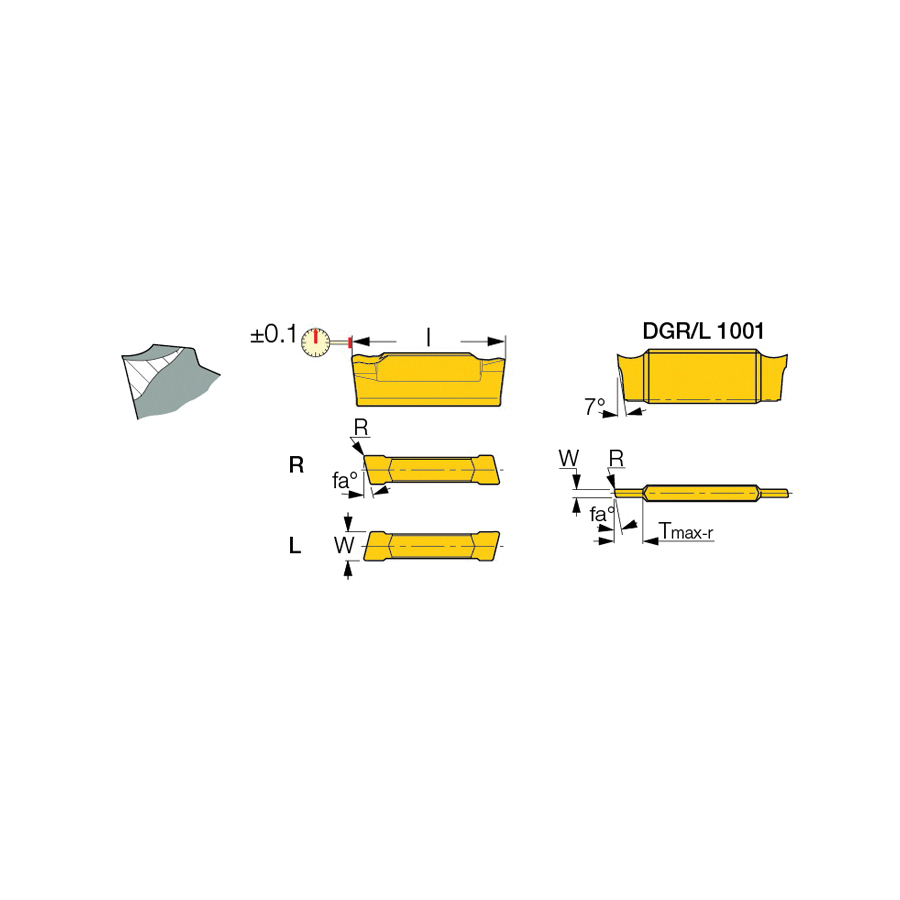

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 1400JS-15D Insert, 1.4 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.4 mm Width, 15.4 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 1400JS-15D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS - sharp corner
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationBoring and Parting
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width1.4 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size1400JS-15D
Insert StyleDGR
ISO CodeDGR 1400JS-15D IC908
Lead Angle15 deg
Lead Angle DirectionRight Hand
Length15.4 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width1.4 mm
Additional Information
Country of OriginIS
