Iscar ISCAR 6003034

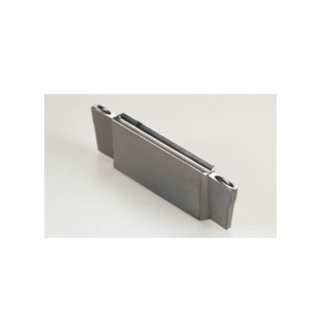

Iscar 6003034 DO-GRIP Cut-Off/Parting Insert, 1001J-8D Insert, DGR Insert, Material Grade: H, K, M, P, S, 1 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgr 1001j-8d Ic908
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 1001J-8D Insert, 1 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1 mm Width, 21 mm Length, J Chipbreaker, 0.07 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 1001J-8D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.07 mm
Cutting Width1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size1001J-8D
Insert StyleDGR
ISO CodeDGR 1001J-8D IC908
Lead Angle8 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width1 mm
Additional Information
Country of OriginIL
