Iscar ISCAR 6003030

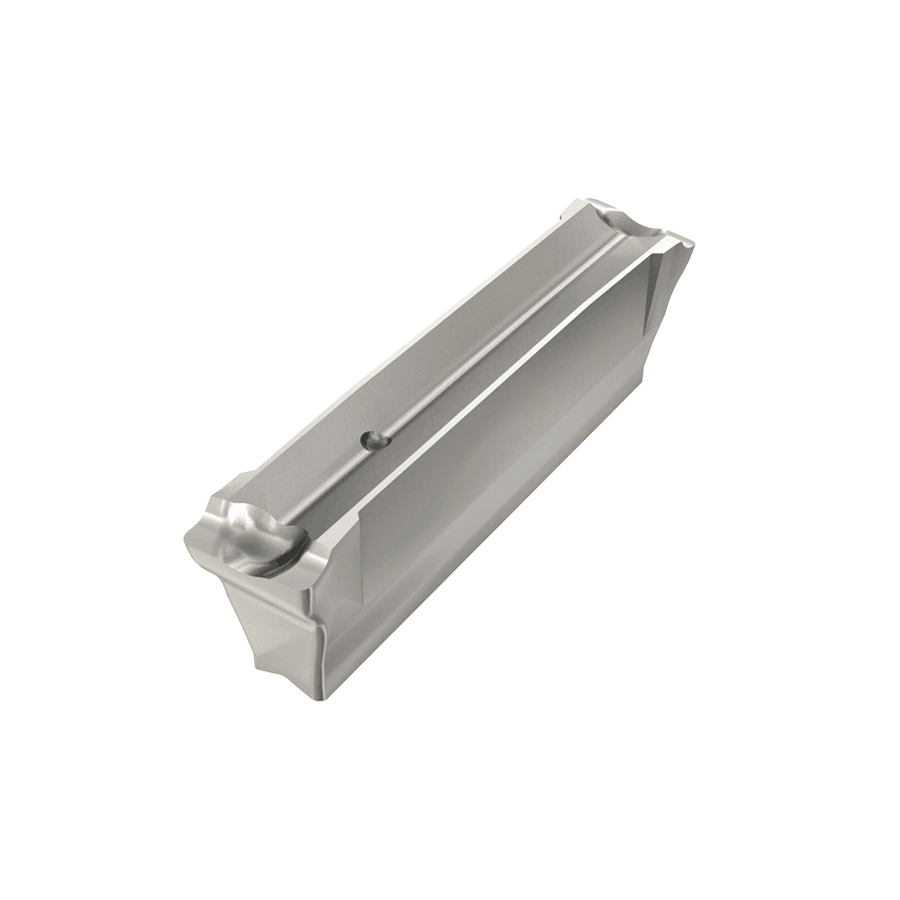

Iscar 6003030 DO-GRIP Cut-Off/Parting Insert, 5003UT Insert, DGN Insert, Material Grade: H, K, M, P, S, 5 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 5003UT Insert, 5 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, Rectangle Shape, 5 mm Width, 19 mm Length, UT Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 5003UT IC908, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- A chipformer for use at low feeds
- Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials
- The narrow chipformer design ensures short deformed chips
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerUT
Corner Radius0.3 mm
Cutting Width5 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size5003UT
Insert StyleDGN
ISO CodeDGN 5003UT IC908
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDO-GRIP
ShapeRectangle
Width5 mm
