Iscar ISCAR 6002968

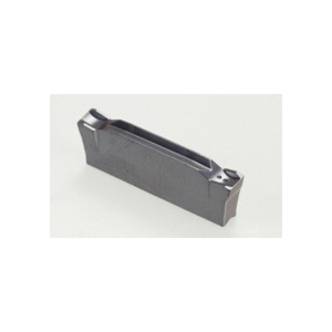

Iscar 6002968 DO-GRIP Cut-Off/Parting Insert, 3102C-6D Insert, DGR Insert, Material Grade: H, K, M, P, S, 3.1 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated

Invoice description: Dgr 3102c-6d Ic908

UNSPSC: 23242107
Manufacturer PN: 6002968
$38.58 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 3102C-6D Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 3.1 mm Width, 21 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 3102C-6D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S

  • Features

  • First choice for the parting of bars, hard materials and tough applications
  • A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
  • Medium-to-high feeds
  • IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3102C-6D
Insert StyleDGR
ISO CodeDGR 3102C-6D IC908
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm

Additional Information

Country of OriginIL
