Iscar ISCAR 6002966

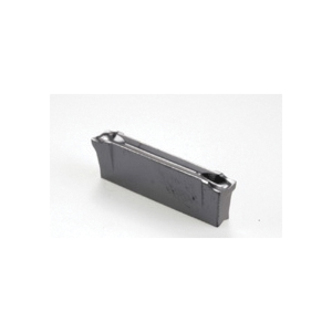

Iscar 6002966 DO-GRIP Parting Insert With Internal Coolant Channel, 3102J-6D Insert, DGL Insert, Material Grade: H, K, M, N, P, S, 3.1 mm W Cutting, 6 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908
Invoice description:
Dgl 3102j-6d Ic908
Factory Order
Iscar Parting Insert, Series: DO-GRIP, DGL Insert, 3102J-6D Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 21 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGL 3102J-6D IC908, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS - sharp corner
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor groove turning applications
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert Size3102J-6D
Insert StyleDGL
ISO CodeDGL 3102J-6D IC908
Lead Angle6 deg
Lead Angle DirectionLeft Hand
Length21 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIS
