Iscar ISCAR 6002965

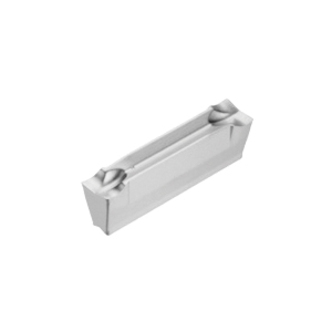

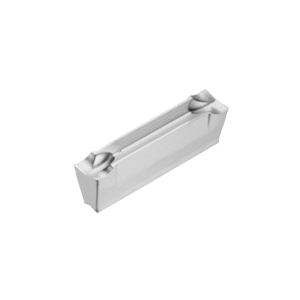

Iscar 6002965 DO-GRIP Cut-Off/Parting Insert, 4003J Insert, DGN Insert, Material Grade: H, K, M, P, S, 4 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgn 4003j Ic908
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 4003J Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.9 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 4003J IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size4003J
Insert StyleDGN
ISO CodeDGN 4003J IC908
Lead Angle DirectionNeutral
Length18.9 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
