Iscar ISCAR 6002960

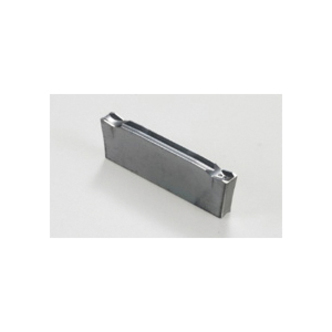

Iscar 6002960 DO-GRIP Parting Insert, 2202C Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 2.2 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgn 2202c Ic908
Factory Order

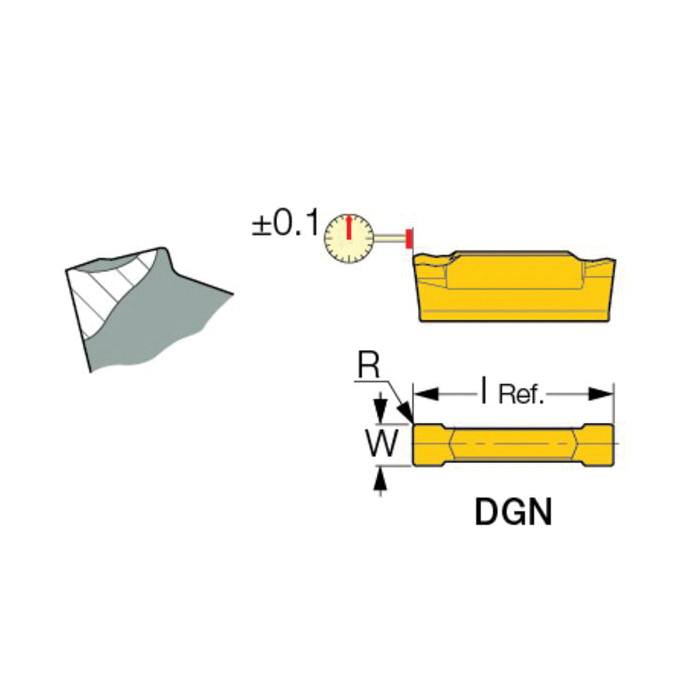

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 2202C Insert, 2.2 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 2202C IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to high feed
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2202C
Insert StyleDGN
ISO CodeDGN 2202C IC908
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19.8 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIS
