Iscar ISCAR 6002959

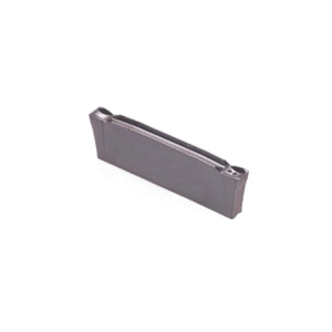

Iscar 6002959 DO-GRIP Parting Insert, 2002C Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 2 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgn 2002c Ic908
Factory Order

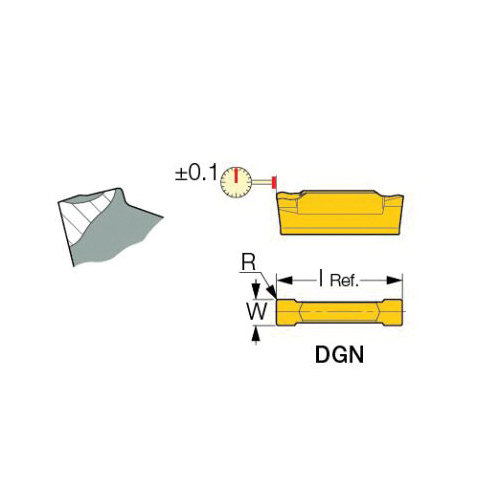

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 2002C Insert, 2 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, Rectangle Shape, 2 mm Width, 19.9 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 2002C IC908, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
- C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to high feed
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size2002C
Insert StyleDGN
ISO CodeDGN 2002C IC908
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19.9 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
SeriesDO-GRIP
ShapeRectangle
Width2 mm
Additional Information
Country of OriginIS
