Iscar ISCAR 6002957

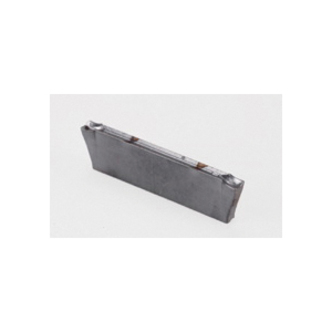

Iscar 6002957 DO-GRIP Cut-Off/Parting Insert, 1402J Insert, DGN Insert, Material Grade: H, K, M, P, S, 1.4 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgn 1402j Ic908
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 1402J Insert, 1.4 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.4 mm Width, 15.8 mm Length, J Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGN 1402J IC908, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.16 mm
Cutting Width1.4 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size1402J
Insert StyleDGN
ISO CodeDGN 1402J IC908
Lead Angle0 deg
Lead Angle DirectionNeutral
Length15.8 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width1.4 mm
Additional Information
Country of OriginIL
