Iscar ISCAR 6002954

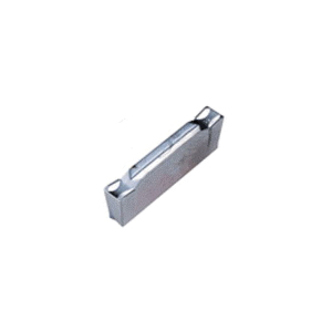

Iscar 6002954 CUT-GRIP Parting Insert, 3003C Insert, HGN Insert, Material Grade: H, K, M, N, P, S, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908, PVD Coated

Invoice description: Hgn 3003c Ic908

UNSPSC: 23291503

Manufacturer PN: 6002954

^$38.58 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

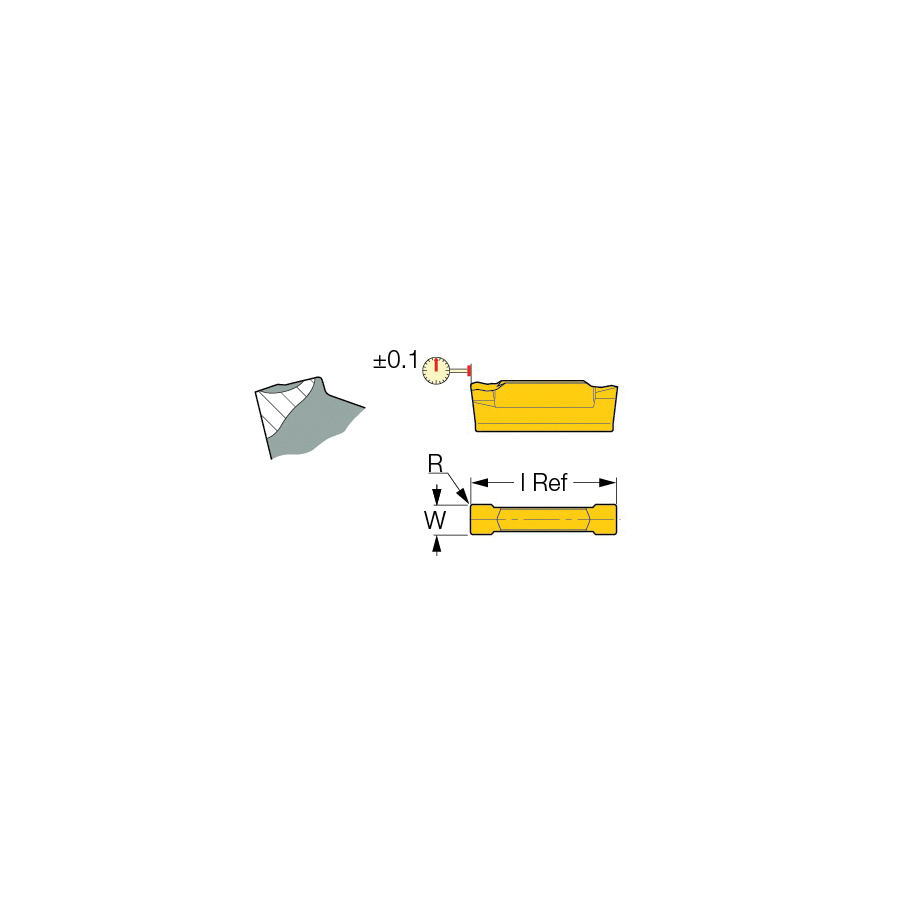

Iscar Parting Insert, Series: CUT-GRIP, HGN Insert, 3003C Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 15.8 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: HGN 3003C IC908, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S

Features
First choice for the parting of bars, hard materials and tough applications
A positive rake with a single cavity and a negative land
Provides extra cutting edge strength
Used for medium-to high feeds
IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
Provides high wear and oxidation resistance
Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationExternal Grooving and Turning, Face Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Grooving, Internal Grooving and Turning and T-Slotting

ChipbreakerC

Corner Radius0.3 mm

Cutting Width3 mm

FinishPVD Coated

Hand of InsertAmbidextrous

Included Angle90 deg

Insert Size3003C

Insert StyleHGN

ISO CodeHGN 3003C IC908

Lead Angle0 deg

Lead Angle DirectionNeutral

Length15.8 mm
