Iscar ISCAR 6002951

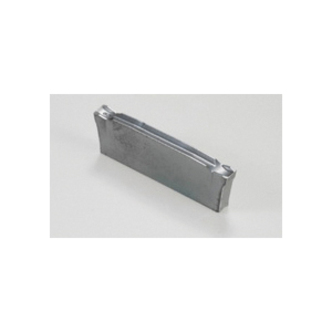

Iscar 6002951 DO-GRIP Cut-Off/Parting Insert, 2202C-6D Insert, DGR Insert, Material Grade: H, K, M, P, S, 2.2 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC908, PVD Coated
Invoice description:
Dgr 2202c-6d Ic908
Factory Order

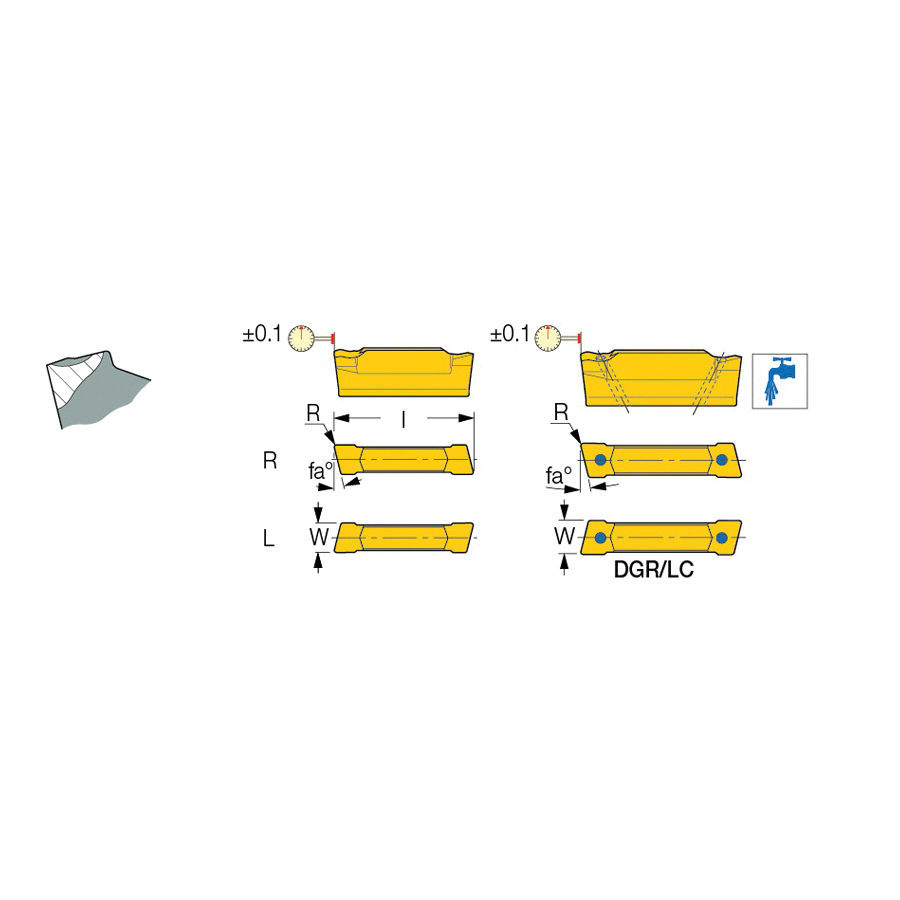

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 2202C-6D Insert, 2.2 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 2.2 mm Width, 20.8 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 2202C-6D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2202C-6D
Insert StyleDGR
ISO CodeDGR 2202C-6D IC908
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length20.8 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
