Iscar ISCAR 6002950

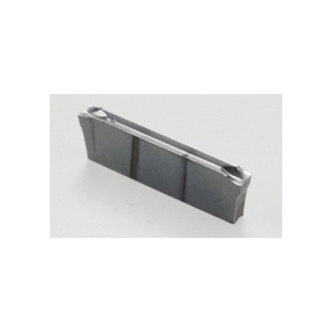

Iscar 6002950 DO-GRIP Parting Insert With Internal Coolant Channel, 2202J-6D Insert, DGR Insert, Material Grade: H, K, M, N, P, S, 2.2 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC908
Invoice description:
Dgr 2202j-6d Ic908
Factory Order

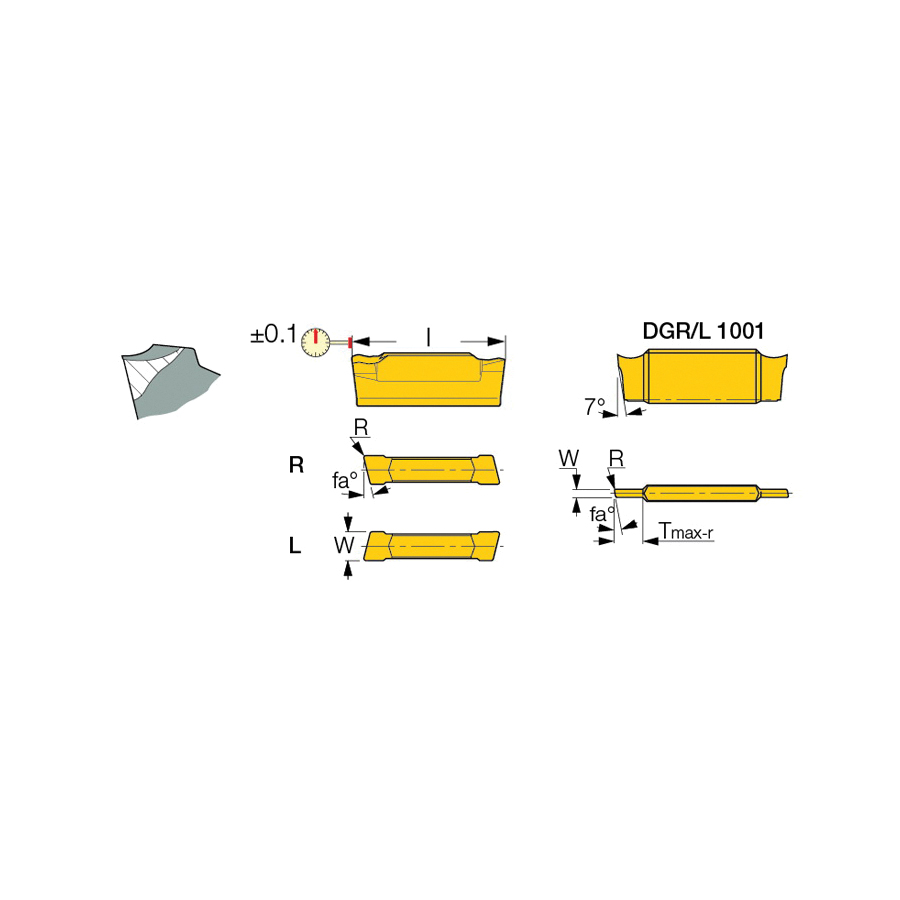

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 2202J-6D Insert, 2.2 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 21 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: DGR 2202J-6D IC908, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS - sharp corner
- IC908 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFor groove turning applications
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size2202J-6D
Insert StyleDGR
ISO CodeDGR 2202J-6D IC908
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIS
