Iscar ISCAR 6002865

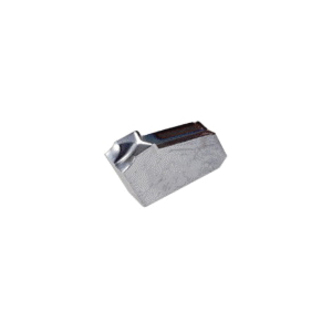

Iscar 6002865 SELF-GRIP Cut-Off/Parting Insert, 4J-6D Insert, GFR Insert, Material Grade: M, P, S, 4 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 4J-6D Insert, 4 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, J Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFR 4J - 6D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.25 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size4J-6D
Insert StyleGFR
ISO CodeGFR 4J - 6D IC328
Lead Angle6 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width4 mm
