Iscar ISCAR 6002809

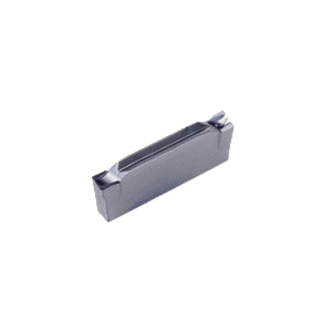

Iscar 6002809 DO-GRIP Parting Insert With Internal Coolant Channel, 3102C Insert, DGR Insert, Material Grade: H, K, M, N, P, S, 3.1 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC808, PVD Coated

UNSPSC: 23291503
Manufacturer PN: 6002809
$38.58 EA
Factory Order
Estimated to ship in 14 days
QTY:

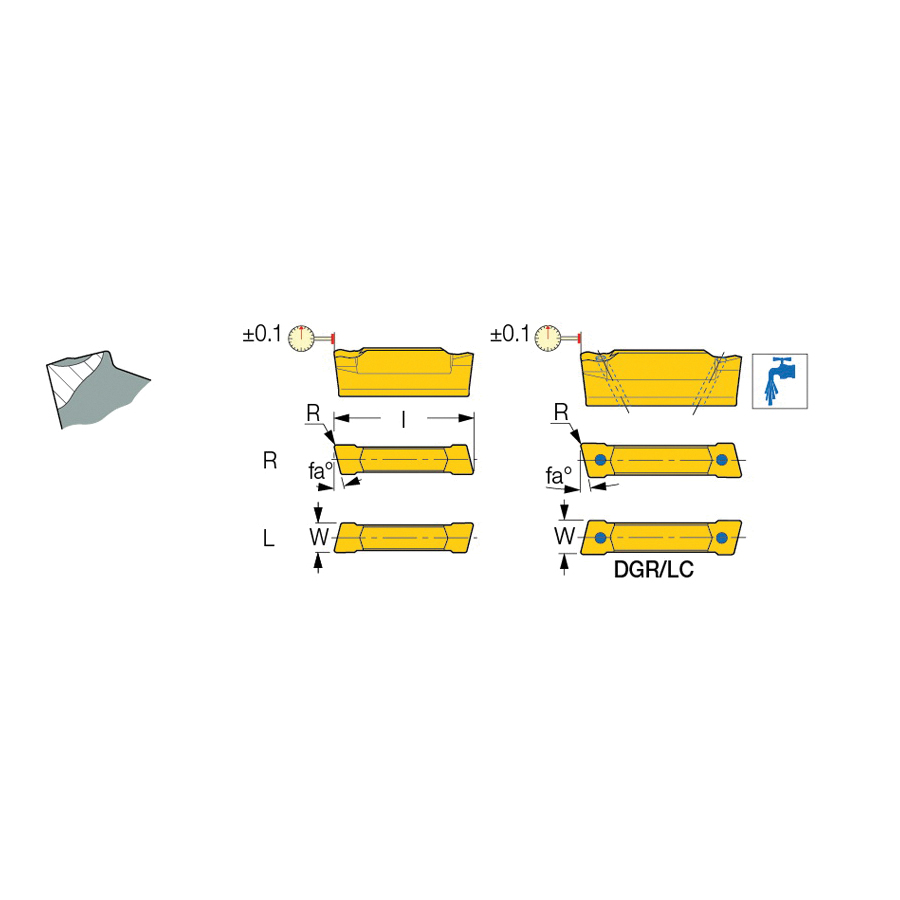

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 3102C Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 3.1 mm Width, 21 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: DGR 3102C-6D IC808, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S

  • Features

  • First choice for the parting of bars, hard materials and tough applications
  • A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
  • Medium-to-high feeds
  • IC808 grade - a hard, fine grain substrate with excellent chipping resistance, combined with a new SUMO TEC TiAlN PVD coating
  • Provides high wear resistance
  • Recommended for a very wide range of materials

Specifications

ApplicationFor groove turning applications
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3102C
Insert StyleDGR
ISO CodeDGR 3102C-6D IC808
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, N, P, S
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
