Iscar ISCAR 6002762

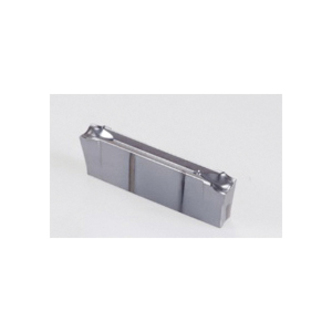

Iscar 6002762 DO-GRIP Cut-Off/Parting Insert, 3100JS Insert, DGR Insert, Material Grade: H, K, M, N, P, S, 3.1 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC308, PVD Coated
Invoice description:
Dgr 3100js-6d Ic308
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 3100JS Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 21 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC308, ISO Code: DGR 3100JS-6D IC308, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS chipbreaker - has a sharp corner
- IC308 grade - a tough sub-micron PVD-coated grade
- Suitable for low-to-medium cutting speed
- Designed for machining of heat resistant alloys, austenitic stainless steel, hard materials and carbon steel at interrupted cut and unfavorable conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3100JS
Insert StyleDGR
ISO CodeDGR 3100JS-6D IC308
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC308
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIL
