Iscar ISCAR 6002752

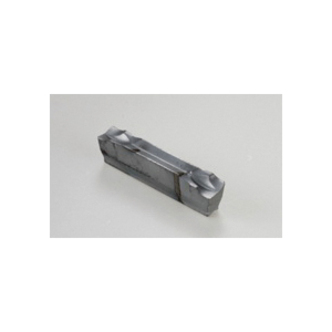

Iscar 6002752 DO-GRIP Cut-Off/Parting Insert, 3002J Insert, HGR Insert, Material Grade: M, P, S, 3 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Hgr 3002j-6d Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, HGR Insert, 3002J Insert, 3 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 15.7 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: HGR 3002J-6D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- For low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3002J
Insert StyleHGR
ISO CodeHGR 3002J-6D IC328
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length15.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
