Iscar ISCAR 6002750

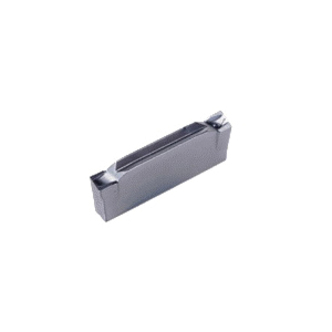

Iscar 6002750 CUT-GRIP Parting Insert, 3003C Insert, HGR Insert, Material Grade: M, P, S, 3 mm W Cutting, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Hgr 3003c-6d Ic328
Factory Order

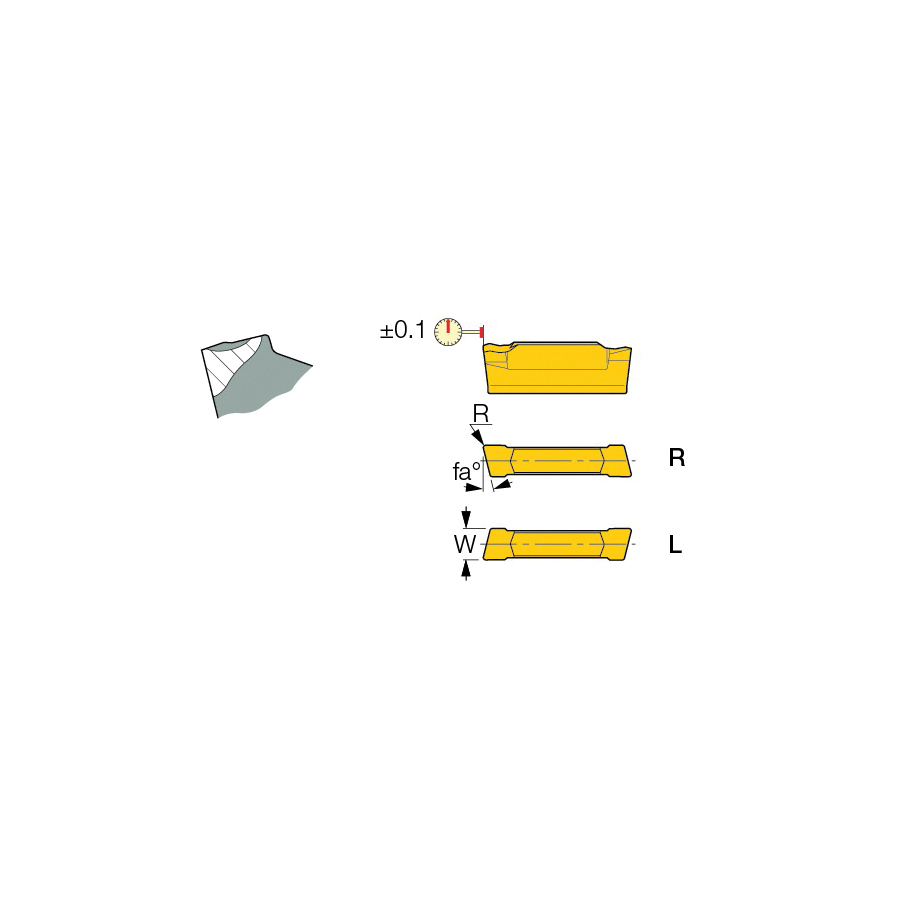

Iscar Parting Insert, Series: CUT-GRIP, HGR Insert, 3003C Insert, 3 mm Cutting Width, Right Hand Lead Angle Direction, Rectangle Shape, 3 mm Width, 15.6 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: HGR 3003C-6D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- Inserts for parting bars, hard materials and tough applications
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
- For milling, parting and grooving of steel, stainless and alloy steels at low-to medium cutting speeds and for unstable machining condition
Specifications
ApplicationExternal Grooving, External Profiling, Face Grooving Along Shaft, Groove Turning, Internal Grooving and Internal Profiling
ChipbreakerC
Corner Radius0.3 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3003C
Insert StyleHGR
ISO CodeHGR 3003C-6D IC328
Lead Angle DirectionRight Hand
Length15.6 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
SeriesCUT-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIS
