Iscar ISCAR 6002745

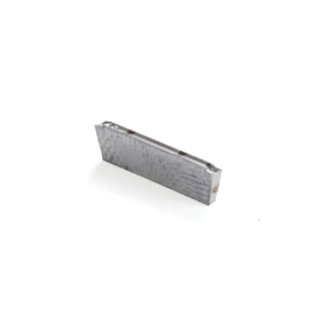

Iscar 6002745 DO-GRIP Parting Insert With Internal Coolant Channel, 1400JS Insert, DGL Insert, Material Grade: M, P, S, 1.4 mm W Cutting, 15 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328
Invoice description:
Dgl 1400js-15d Ic328
Factory Order
Iscar Parting Insert, Series: DO-GRIP, DGL Insert, 1400JS Insert, 1.4 mm Cutting Width, 15 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.4 mm Width, 15.4 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGL 1400JS-15D IC328, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- JS - sharp corner
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
- Suitable for tooling system
Specifications
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width1.4 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert Size1400JS
Insert StyleDGL
ISO CodeDGL 1400JS-15D IC328
Lead Angle15 deg
Lead Angle DirectionLeft Hand
Length15.4 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width1.4 mm
Additional Information
Country of OriginIS
