Iscar ISCAR 6002735

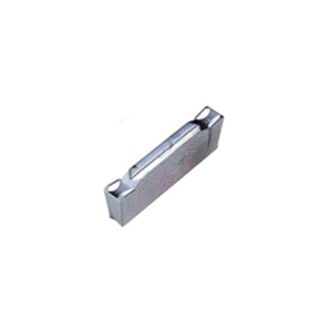

Iscar 6002735 DO-GRIP Parting Insert, 3003C Insert, HGN Insert, Material Grade: M, P, S, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC328, PVD Coated
In stock
(10)
Iscar Parting Insert, Series: DO-GRIP, HGN Insert, 3003C Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, Rectangle Shape, 3 mm Width, 15.8 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: HGN 3003C IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake with a single cavity and a negative land
- Provides extra cutting edge strength
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.3 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3003C
Insert StyleHGN
ISO CodeHGN 3003C IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Length15.8 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
SeriesDO-GRIP
ShapeRectangle
Width3 mm
