Iscar ISCAR 6002732

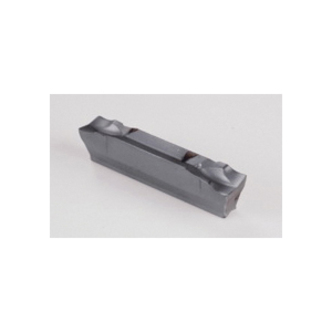

Iscar 6002732 DO-GRIP Parting Insert, 3002J Insert, HGN Insert, Material Grade: M, P, S, 3 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Hgn 3002j Ic328
Factory Order

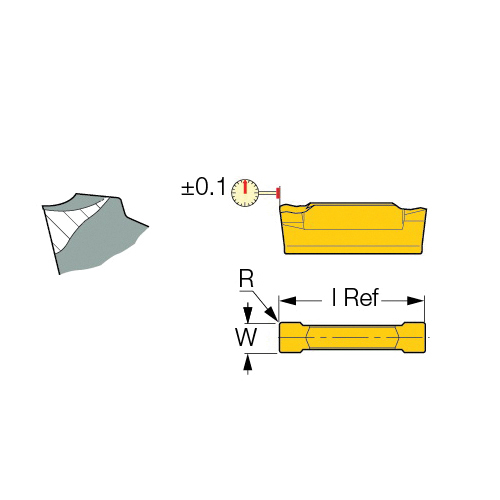

Iscar Parting Insert, Series: DO-GRIP, HGN Insert, 3002J Insert, 3 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, Rectangle Shape, 3 mm Width, 16.1 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: HGN 3002J IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials and stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3002J
Insert StyleHGN
ISO CodeHGN 3002J IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Length16.1 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
SeriesDO-GRIP
ShapeRectangle
Width3 mm
