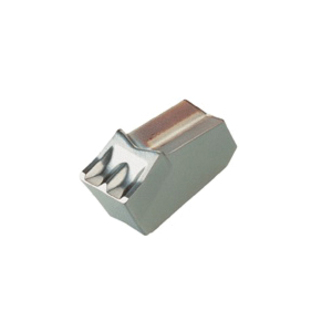

Iscar ISCAR 6002691
Iscar 6002691 SELF-GRIP Cut-Off/Parting Insert, 4.8W Insert, GFN Insert, Material Grade: M, P, 4.8 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gfn 4.8w Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 4.8W Insert, 4.8 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4.8 mm Width, W Chipbreaker, 0.28 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFN 4.8W IC354, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerW
Corner Radius0.28 mm
Cutting Width4.8 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size4.8W
Insert StyleGFN
ISO CodeGFN 4.8W IC354
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width4.8 mm
Additional Information
Country of OriginIL
