Iscar ISCAR 6002681

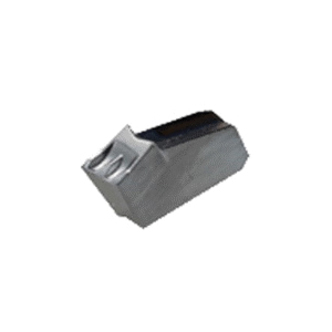

Iscar 6002681 SELF-GRIP Cut-Off/Parting Insert, 3W-4D Insert, GFR Insert, Material Grade: M, P, 3 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gfr 3w - 4d Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 3W-4D Insert, 3 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, W Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFR 3W-4D IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- Parting and grooving, single ended insert
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to high cutting speeds
- W-type chipformer with a central ridge that forms double cavities on the rake face
- Most efficient on alloy and stainless steel
Specifications
ApplicationFor groove turning applications
ChipbreakerW
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3W-4D
Insert StyleGFR
ISO CodeGFR 3W-4D IC354
Lead Angle4 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIS
