Iscar ISCAR 6002667

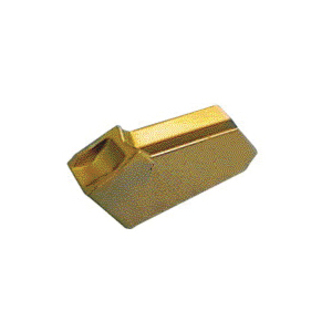

Iscar 6002667 SELF-GRIP Cut-Off/Parting Insert, 2.4-8D Insert, GFL Insert, Material Grade: M, P, 2.4 mm W Cutting, 8 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated

Invoice description: Gfl 2.4 - 8d Ic354

UNSPSC: 23242107
Manufacturer PN: 6002667
$19.98 EA
Factory Order
Estimated to ship in 14 days
QTY:

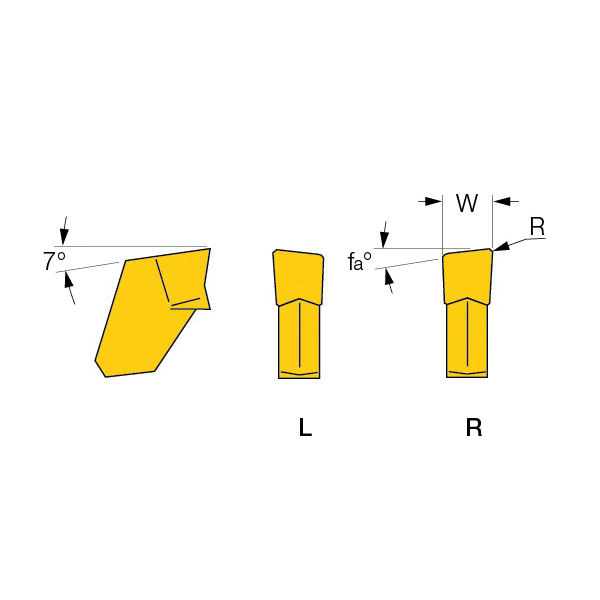

Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFL Insert, 2.4-8D Insert, 2.4 mm Cutting Width, 8 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.4 mm Width, 8D Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFL 2.4 - 8D IC354, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: M, P

  • Features

  • First choice for the parting of bars, hard materials and tough applications
  • Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
  • Medium-to-high feeds
  • IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
  • High toughness
  • For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds

Specifications

ApplicationExternal Grooving, Internal Grooving and Groove Turning
Chipbreaker8D
Corner Radius0.16 mm
Cutting Width2.4 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert Size2.4-8D
Insert StyleGFL
ISO CodeGFL 2.4 - 8D IC354
Lead Angle8 deg
Lead Angle DirectionLeft Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width2.4 mm

Additional Information

Country of OriginIL
