Iscar ISCAR 6002602

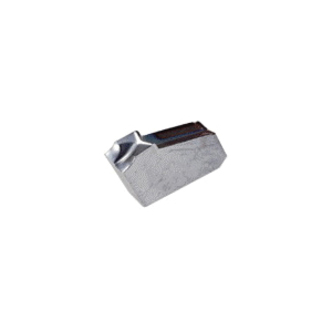

Iscar 6002602 SELF-GRIP Cut-Off/Parting Insert, 1.2JS Insert, GFR Insert, Material Grade: M, P, S, 1.2 mm W Cutting, 10 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gfr 1.2js-10d Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 1.2JS Insert, 1.2 mm Cutting Width, 10 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.2 mm Width, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFR 1.2JS-10D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJS
Corner Radius0.02 mm
Cutting Width1.2 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size1.2JS
Insert StyleGFR
ISO CodeGFR 1.2JS-10D IC328
Lead Angle10 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width1.2 mm
Additional Information
Country of OriginIL
