Iscar ISCAR 6002596

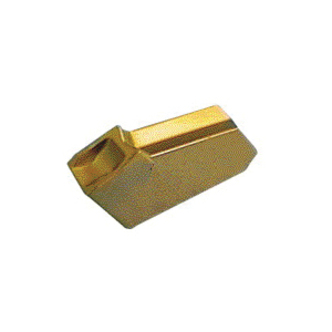

Iscar 6002596 SELF-GRIP Cut-Off/Parting Insert, 3-4D Insert, GFR Insert, Material Grade: M, P, 3 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gfr 3 - 4d Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 3-4D Insert, 3 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 4D Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GFR 3-4D IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
Specifications
ApplicationFor groove turning applications
Chipbreaker4D
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3-4D
Insert StyleGFR
ISO CodeGFR 3-4D IC354
Lead Angle4 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIS
