Iscar ISCAR 6002595

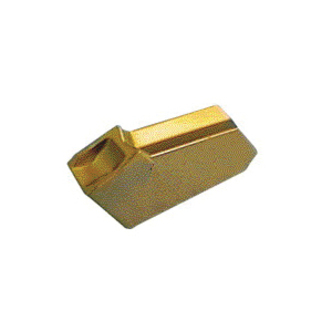

Iscar 6002595 SELF-GRIP Cut-Off/Parting Insert, 3-4D Insert, GFR Insert, Material Grade: M, P, S, 3 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gfr 3 - 4d Ic328
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 3-4D Insert, 3 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFR 3 - 4D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3-4D
Insert StyleGFR
ISO CodeGFR 3 - 4D IC328
Lead Angle4 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
