Iscar ISCAR 6002594

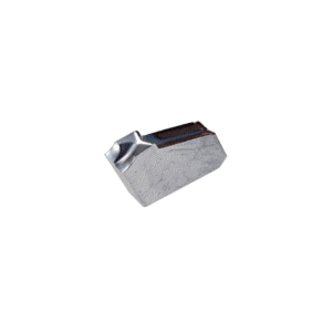

Iscar 6002594 SELF-GRIP Parting Insert, 3J-6D Insert, GFR Insert, Material Grade: M, P, S, 3 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gfr 3j - 6d Ic328
Factory Order
Iscar Parting Insert, Series: SELF-GRIP, GFR Insert, 3J-6D Insert, 3 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, J Chipbreaker, 0.25 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFR 3J-6D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
Specifications
ApplicationFor groove turning applications
ChipbreakerJ
Corner Radius0.25 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3J-6D
Insert StyleGFR
ISO CodeGFR 3J-6D IC328
Lead Angle6 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIS
