Iscar ISCAR 6002573

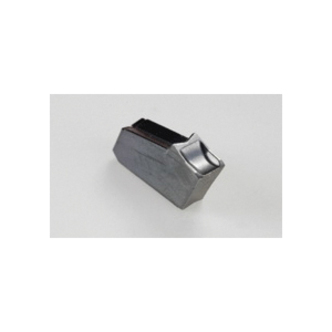

Iscar 6002573 SELF-GRIP Cut-Off/Parting Insert, 3 Insert, GFN Insert, Material Grade: M, P, S, 3.03 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Gfn3 Ic328 Insert, 60025 73
In stock
(30)
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 3 Insert, 3.03 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.03 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: GFN 3 IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.03 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3
Insert StyleGFN
ISO CodeGFN 3 IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3.03 mm
Additional Information
Country of OriginIL
