Iscar ISCAR 6002545

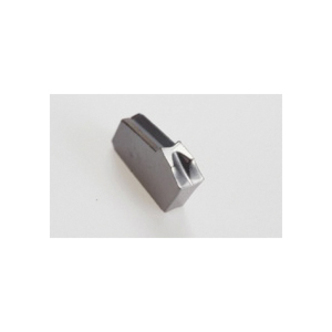

Iscar 6002545 SELF-GRIP Cut-Off/Parting Insert, 2J GFN Insert, Material Grade: M, P, S, 1.99 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC328, PVD Coated
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 2J Insert, 1.99 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangular, 1.99 mm Width, J Chipbreaker, 0.16 mm Corner Radius, Manufacturer's Grade: IC328, ISO Code: GFN 2J IC328, 90 deg Included Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
SeriesSELF-GRIP
Insert StyleGFN
Insert Size2J
Cutting Width1.99 mm
Lead Angle0 deg
Lead Angle DirectionNeutral
Relief Angle7 deg
ShapeRectangular
