Iscar ISCAR 6002525

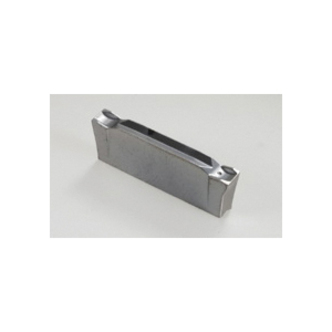

Iscar 6002525 DO-GRIP Parting Insert With Internal Coolant Channel, 3102C Insert, DGR Insert, Material Grade: M, P, S, 3.1 mm W Cutting, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgr 3102c-8d Ic328
Factory Order

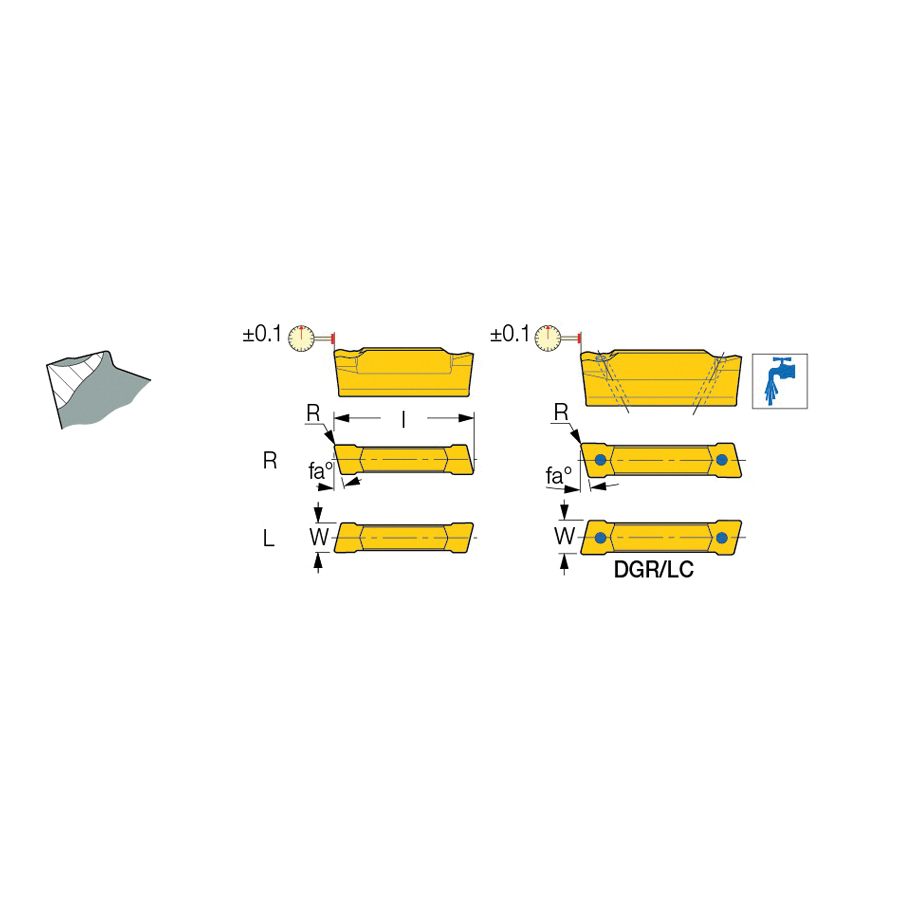

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 3102C Insert, 3.1 mm Cutting Width, 8 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 21 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGR 3102C-8D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
- For milling, parting and grooving of steel, stainless and alloy steels at low-to medium cutting speeds and for unstable machining condition
Specifications
ApplicationFor groove turning applications
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3102C
Insert StyleDGR
ISO CodeDGR 3102C-8D IC328
Lead Angle8 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIS
