Iscar ISCAR 6002505

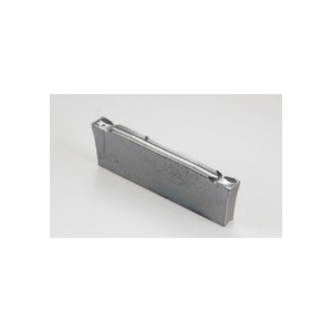

Iscar 6002505 DO-GRIP Parting Insert, 2002C DGN Insert, Material Grade: M, P, 2 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturer's Grade: IC354, PVD Coated
Factory Order
Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 2002C Insert, 2 mm Cutting Width, Neutral Lead Angle Direction, Rectangular Shape, 2 mm Width, 19.9 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturer's Grade: IC354, ISO Code: DGN 2002C IC354, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to high cutting speeds
- C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to high feed
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
SeriesDO-GRIP
Insert StyleDGN
Insert Size2002C
Cutting Width2 mm
Lead Angle DirectionNeutral
ShapeRectangular
