Iscar ISCAR 6002504

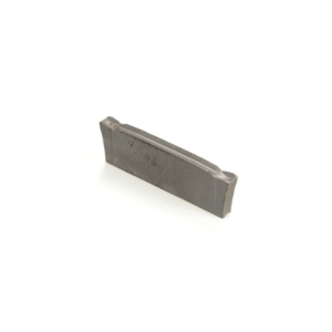

Iscar 6002504 DO-GRIP Cut-Off/Parting Insert, 2002C Insert, DGN Insert, Material Grade: H, K, M, N, S, 2 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Dgn 2002c Ic20
Factory Order

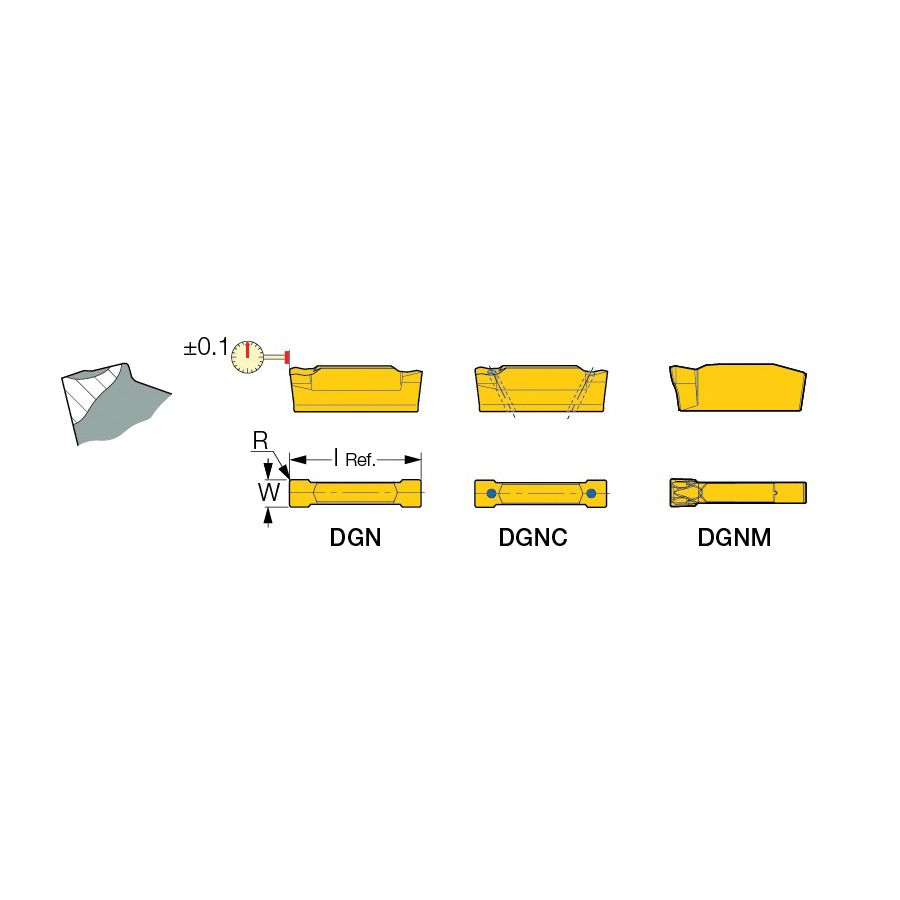

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2002C Insert, 2 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 2 mm Width, 19.9 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGN 2002C IC20, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2 mm
FinishUncoated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2002C
Insert StyleDGN
ISO CodeDGN 2002C IC20
Lead Angle DirectionNeutral
Length19.9 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
SeriesDO-GRIP
ShapeRectangle
Width2 mm
Additional Information
Country of OriginIL
