Iscar ISCAR 6002465

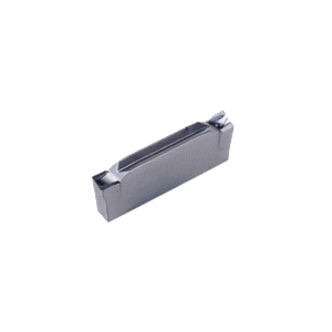

Iscar 6002465 DO-GRIP Cut-Off/Parting Insert, 4003C Insert, DGR Insert, Material Grade: M, P, S, 4 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgr 4003c-4d Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 4003C Insert, 4 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.8 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGR 4003C-4D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.3 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size4003C
Insert StyleDGR
ISO CodeDGR 4003C-4D IC328
Lead Angle4 deg
Lead Angle DirectionRight Hand
Length18.8 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
